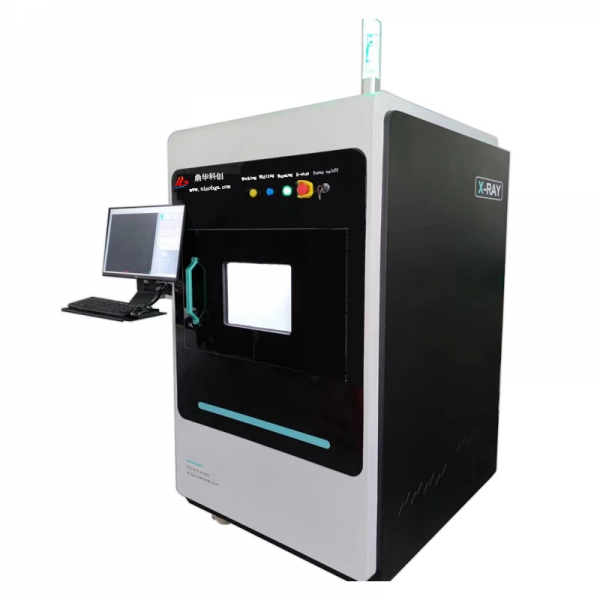

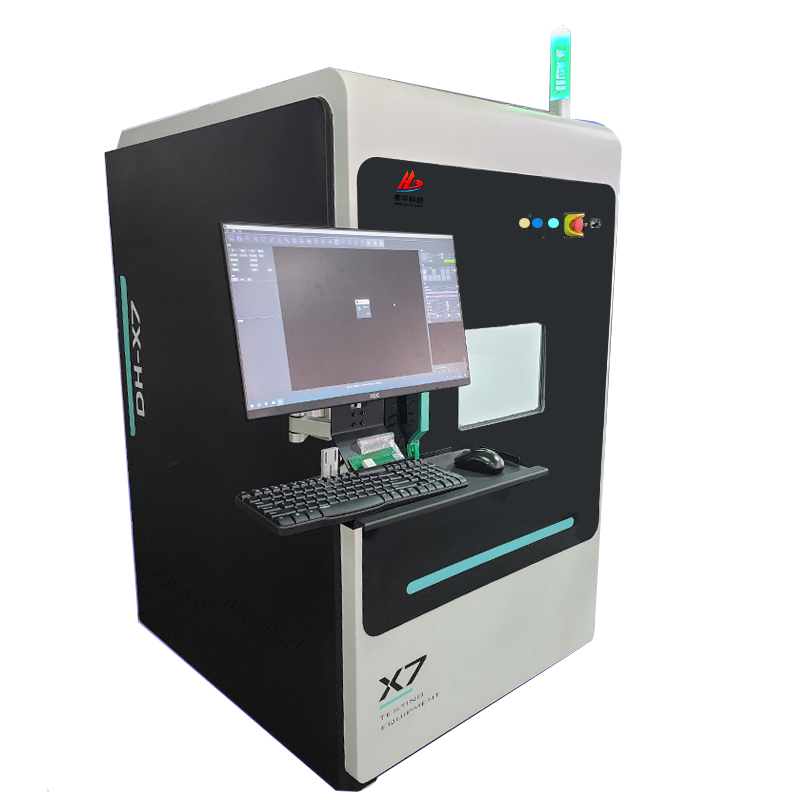

X-Ray inspection equipment oversized DH-X7L

Product name: Dinghua X-Ray inspection equipment oversized
Product model: DH-X7L
Product size: 1400*1670*1920mm (L*W*H)
Applications: SMT, LED, Electronics, automobile pcb

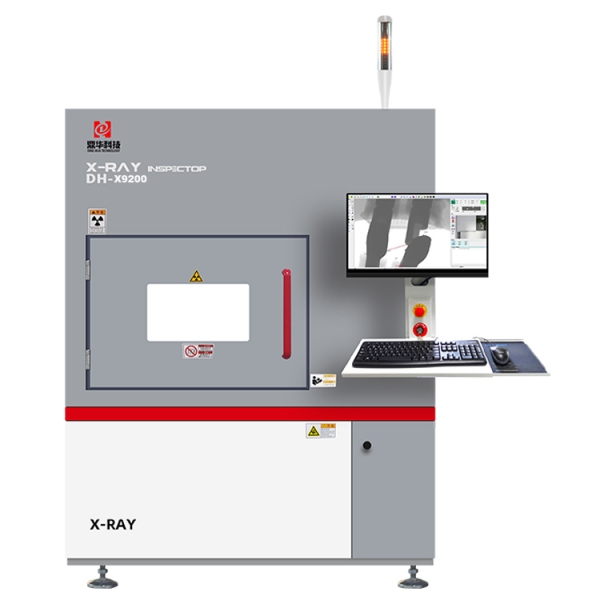

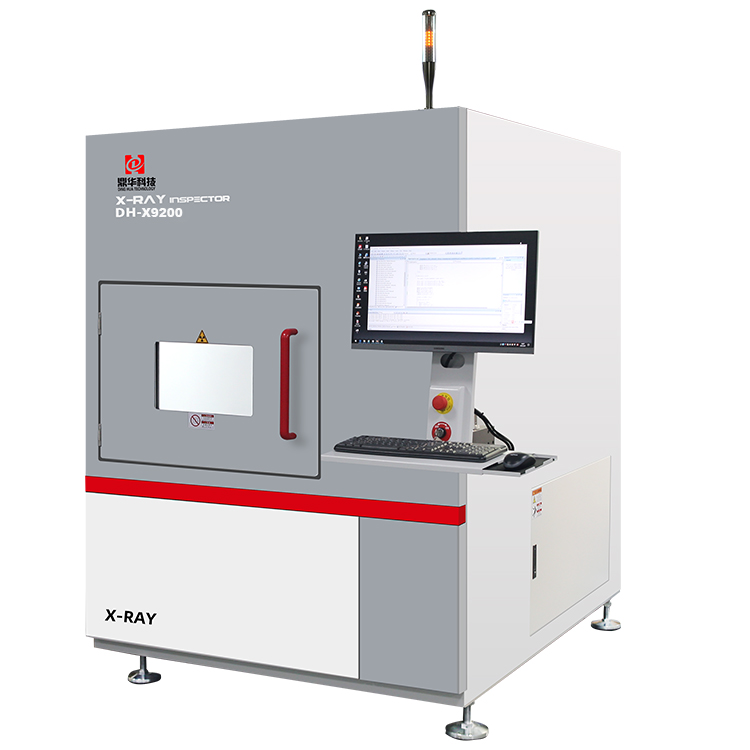

Product advantages: Dinghua X-Ray inspection equipment super-sized DH-X9200
is an automatic ON/OFF X-RAY light tube batch inspection sample, with 130KV
Hamamatsu X-RAY light tube, detection accuracy of 5um, high-resolution digital
X-RAY plate, 1536*1536px image is clearer, geometric magnification 400, system
magnification 1 500X, 1200*710mm stage can accommodate a large number of
samples of various sizes, optional loading platform.
    Features
    Detect defects below 5 microns
    • Easy maintenance, long service life 10000 hours reliable guarantee
    • Simple operation, reducing operator training
    • Detect 1200mm parts
    • Be matched with a manipulator
    • Be used for mass production inspection


    Functions and advantages





    Functions

    Array function: automatic batch detection of samples with fixed positions and the same spacing

    Bubble measurement: one-click measurement of bubble size and void ratio

    Length and width measurement: measure the length and width of part of the detection area

    Visual navigation interface: accurate positioning of detection position

    Simulate Color: Better View Inspection Image




    Advantages

    Automatic ON/OFF X-RAY light tube batch inspection of samples

    With 90/130KV Hamamatsu X-RAY light tube, the detection accuracy reaches 5um

    High resolution digital X-RAY tablet, 1536*1536px image is clearer

    Geometry magnification 400x, system magnification 1500X

    1200*710mm platform loading can accommodate a large number of samples of various sizes

    Optional platform loading 360, rotate the sample



    Product accessories

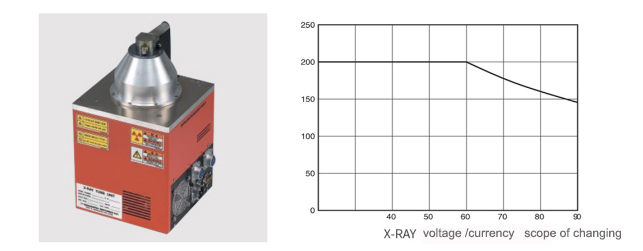

    Microfocus X-ray source


    Japan‘s Hamamatsu X-RAY light tube (HAMAMATSU) has a life span of up to 15000H, 90KV light tube is more commonly
    used in general-purpose X-RAY equipment, providing it with 5um accuracy.

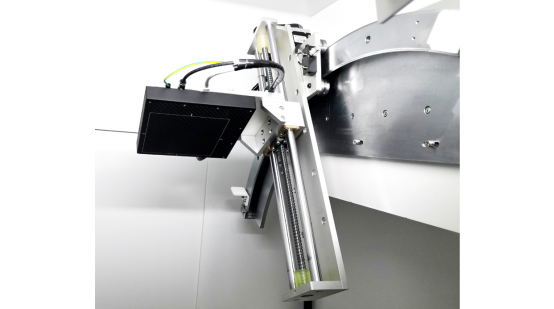

    Digital HD X-RAY flat panel detection





    Effect:
    ①Real-time image acquisition
    ②Real-time image correction to provide high-quality images
    ③ Passive cooling device
    ④Built-in temperature sensor can display the working temperature in real time
    ⑤ A variety of different gain gear PGA + BINNING combined working mode


    Technical paramter

    Model

    DH-X7L

    X-ray Light tube type

    closed type

    Spatial division ratio

    5um

    Light tube voltage

    90/130KV

    Light tube current

    800uA

    Magnification

    Geometric amplification 400x, system amplification 1500x

    Digital Flat Panel Detector Resolution

    1536*1536x

    Digital Flat Panel Detector Density Values

    14bit (16348)

    Image speed

    20FPS

    Plate rotation angle

    60°

    Platform loading size

    1200*710mm

    X-Y distance of run

    1250*1000mm

    Scope of test

    1200*680mm

    Machine size

    1400*1670*1920mm (L*W*H)

    Weight

    1850kg

    Operation system

    WINDOWS 10

    Power supply / Rated power

    AC110-220V50-60HZ 1200W

    Radiation Safety Testing

    <1 uSV/H
