| Rated power | 8200W |

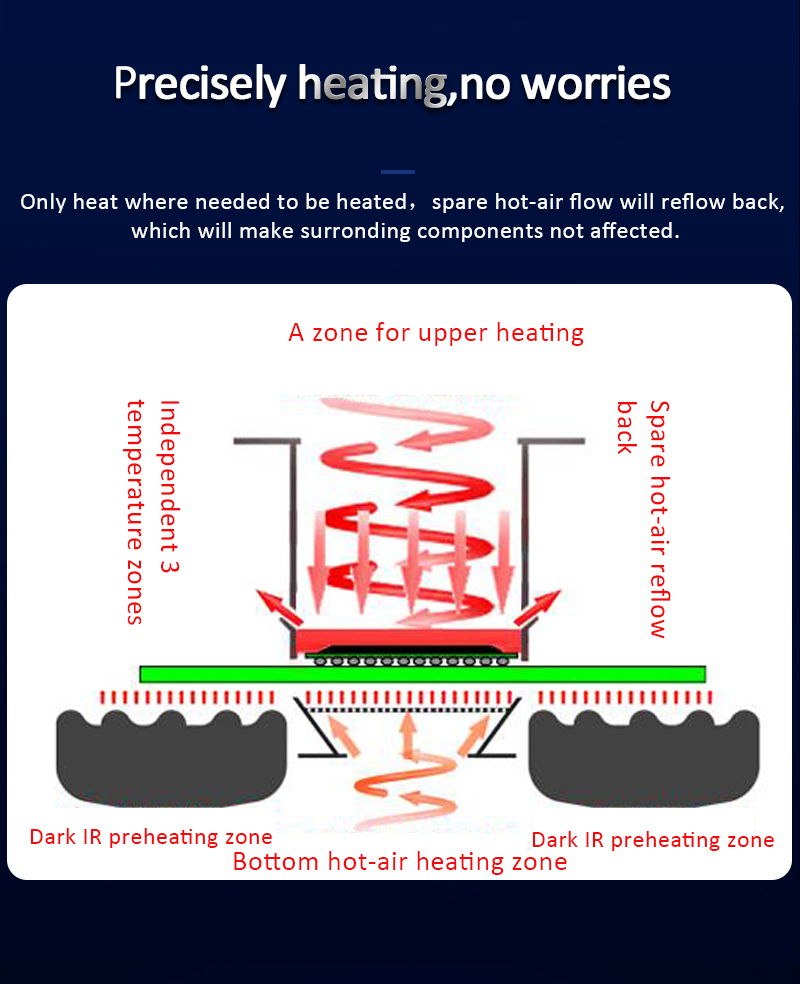

| Upper power | 1200W |
| Lower power | 1200W |
| IR preheating power | 5800W |
| Chip application |
POP, CCGA,BGA,QFN and CSP etc.
|
| Temperature profiles storage | 50000 groups |

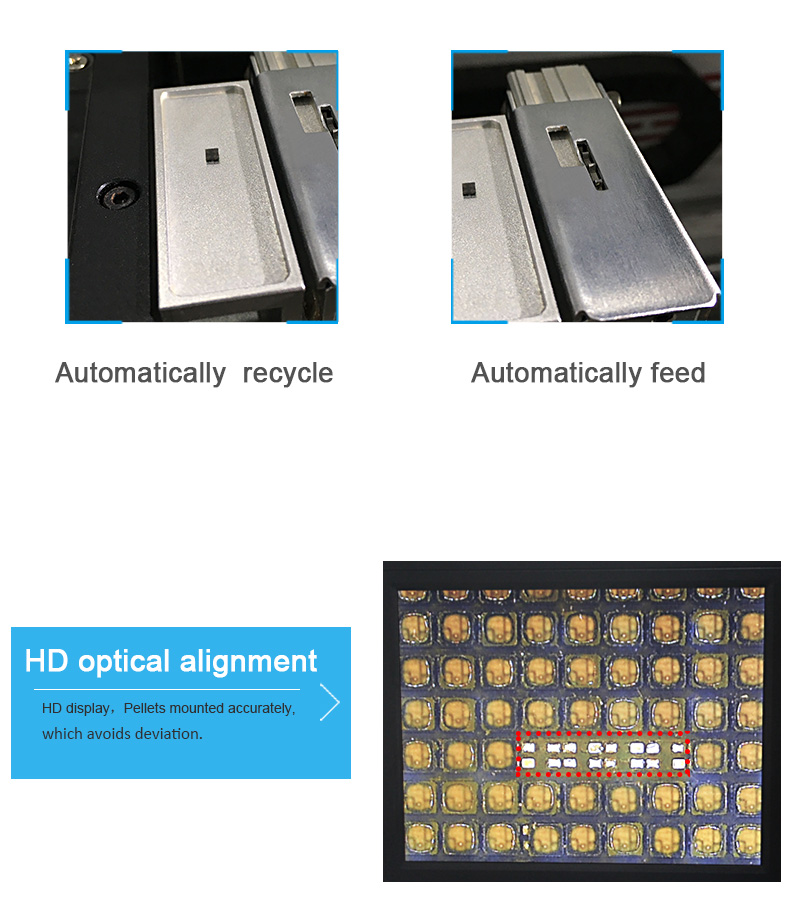

| Chip feeding system | Automatic picking up and replacing |

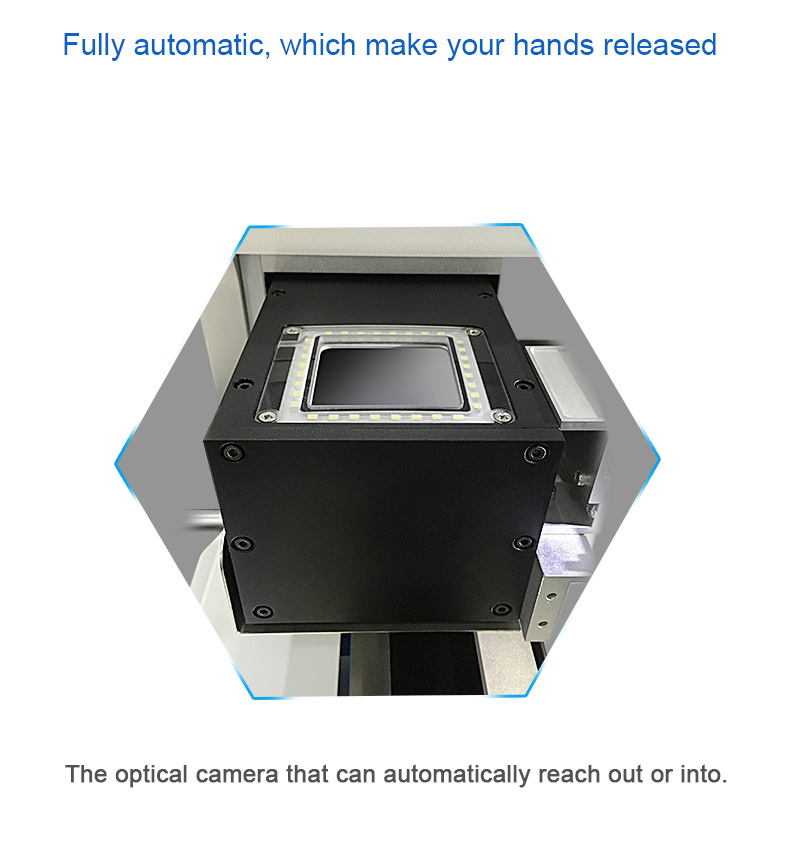

| Optical CCD working mode | Front, back, left and right |
| PCB positioning |
Up and down intelligent positioning,bottom "5-point support" with V-groove fixing PCB which can be adjusted freely in the X-axis direction, with universal fixtures
meanwhile
|

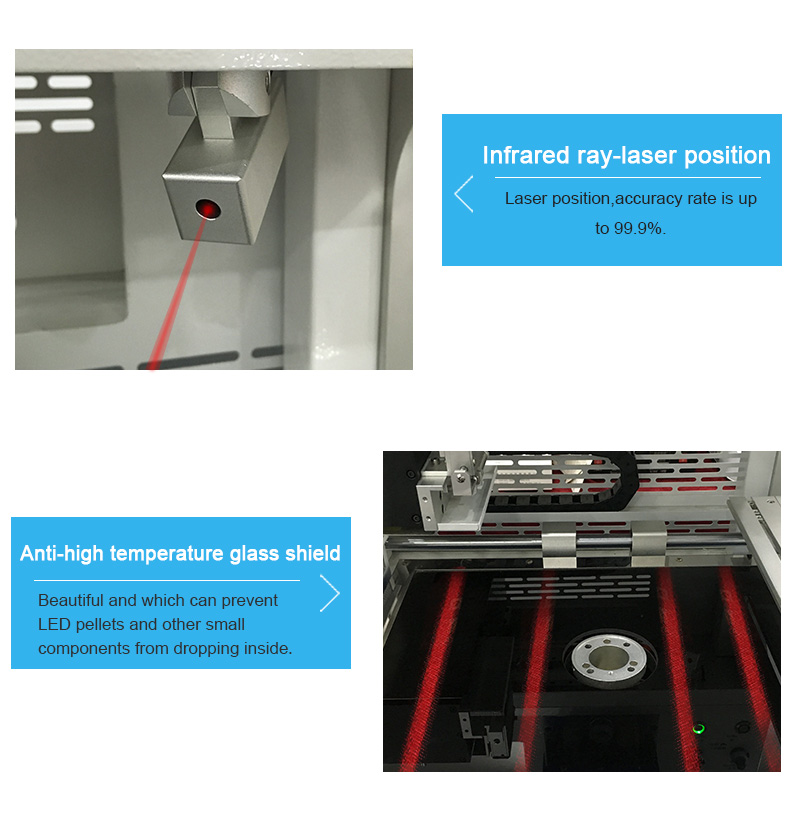

| Chip mounting | Laser positioning and optical CCD locating |
| Temperature accuracy | ± 1 ℃ |
| Alignment accuracy |
0.01mm
|
|
PCB size
|
Max 450×500 mm Min 10×10mm
|
| Chip size | 1*1~100*100mm |
| Min spacing | 0.15mm |

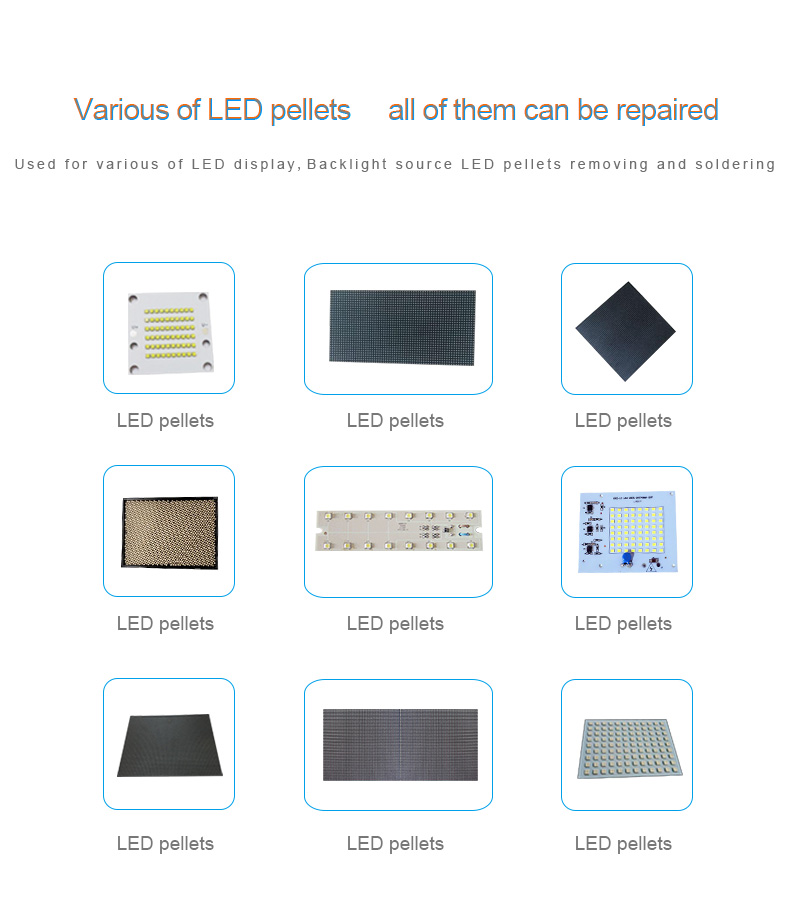

| Min LED spacing | 0.1mm |

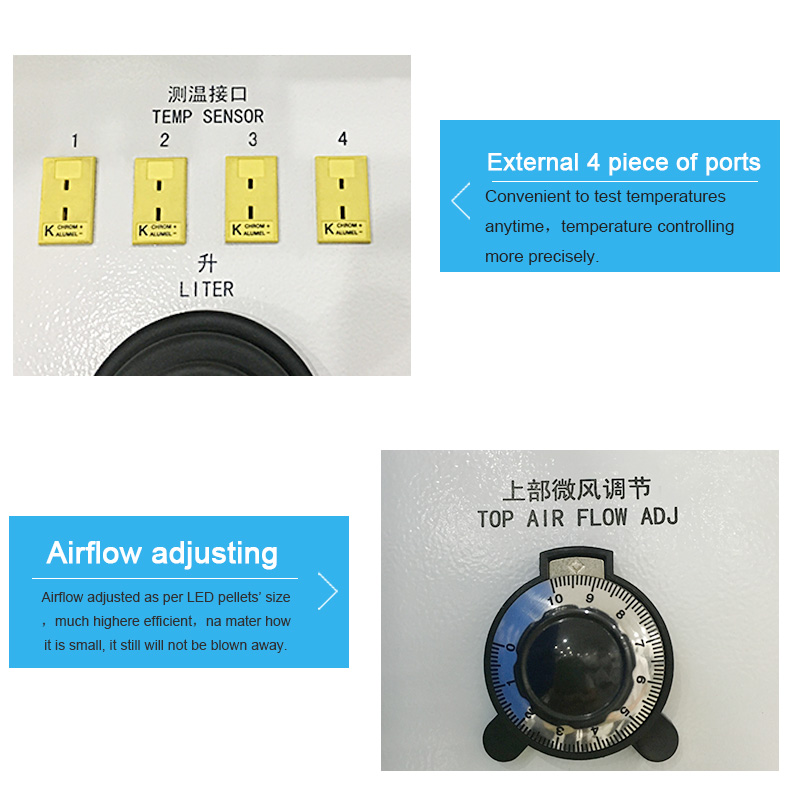

| External temperature ports | 4 pcs (optional) |
| Dimensions |
L900×W850×H1750 mm |
| Weight | 200kg |
