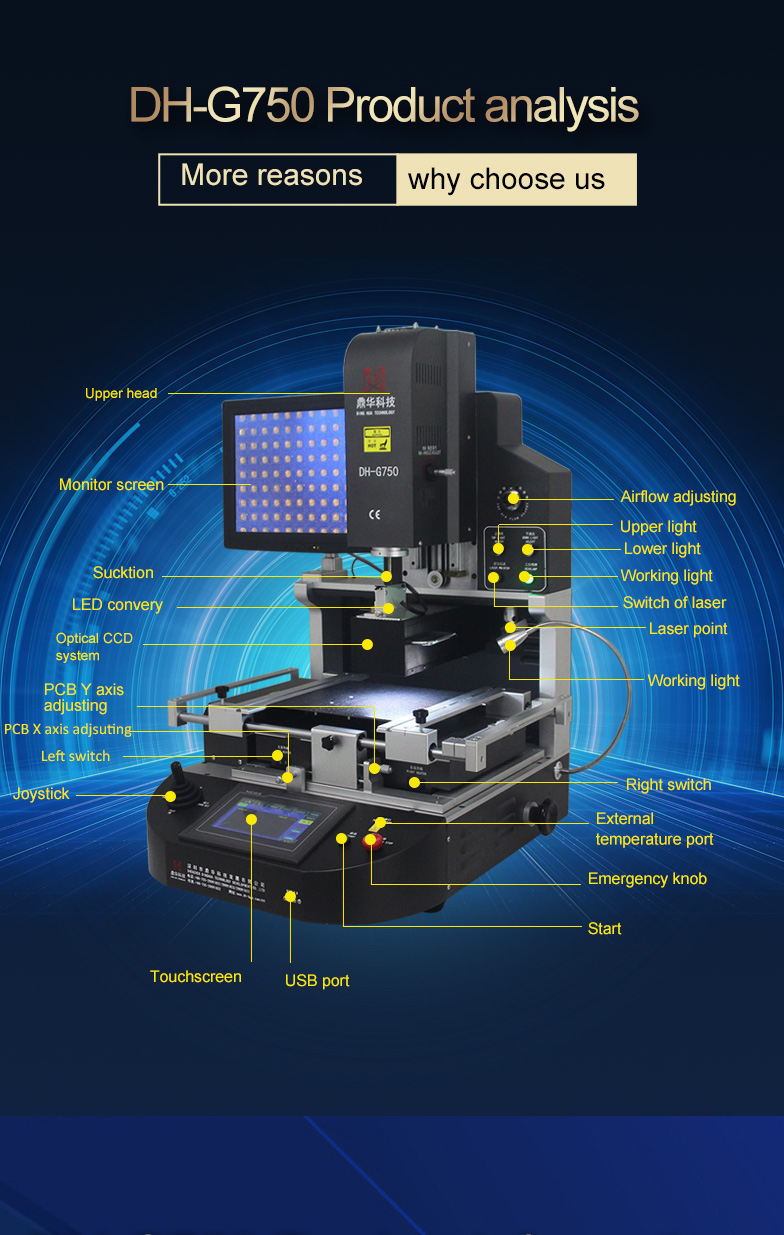

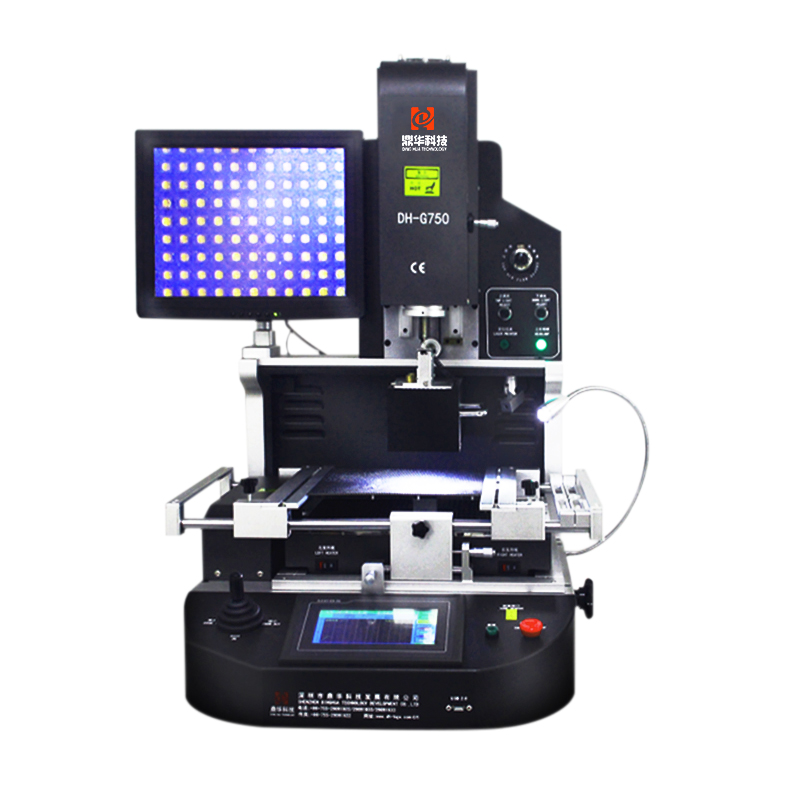

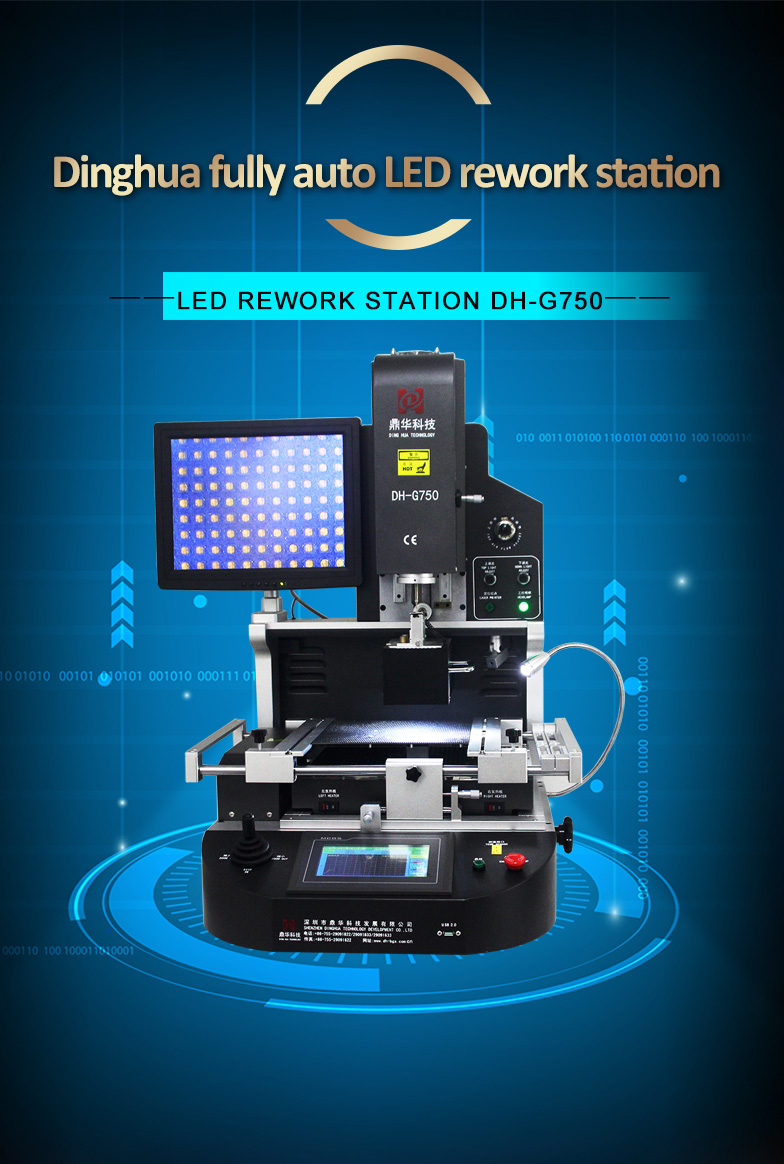

DH-G750 LED rework station

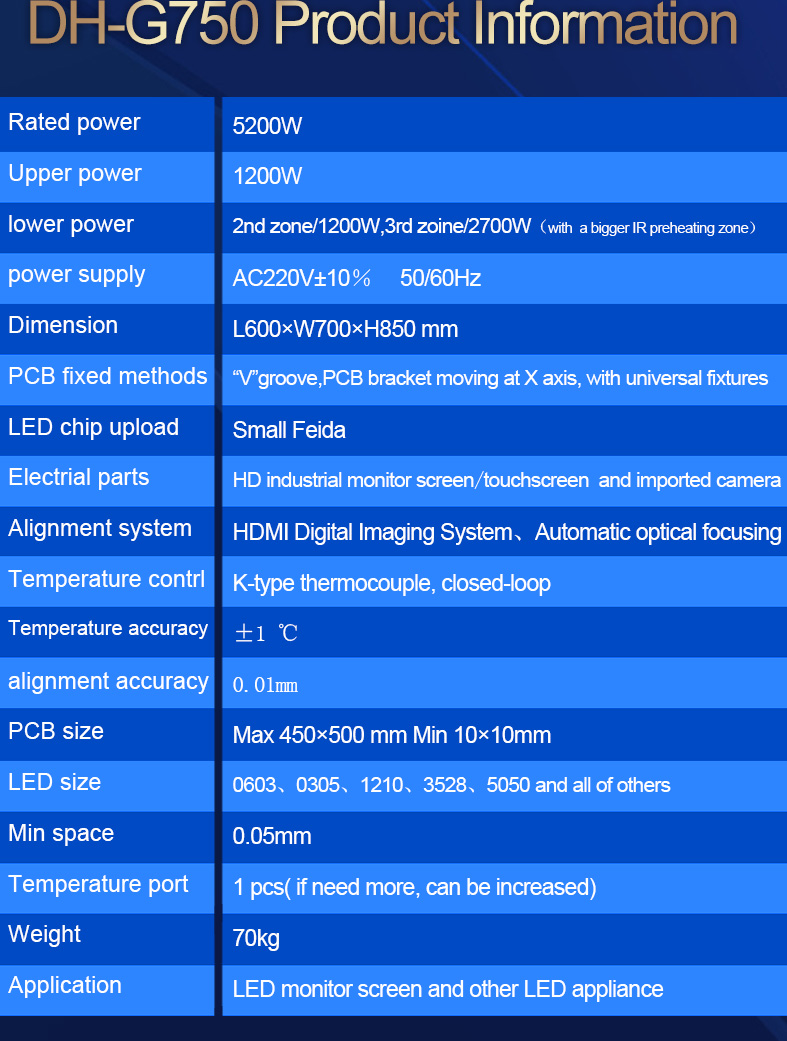

    DH-G750 automatic LED rework station parameter
    Power supply AC 110~250V 50/60Hz
    Rated power 5500W

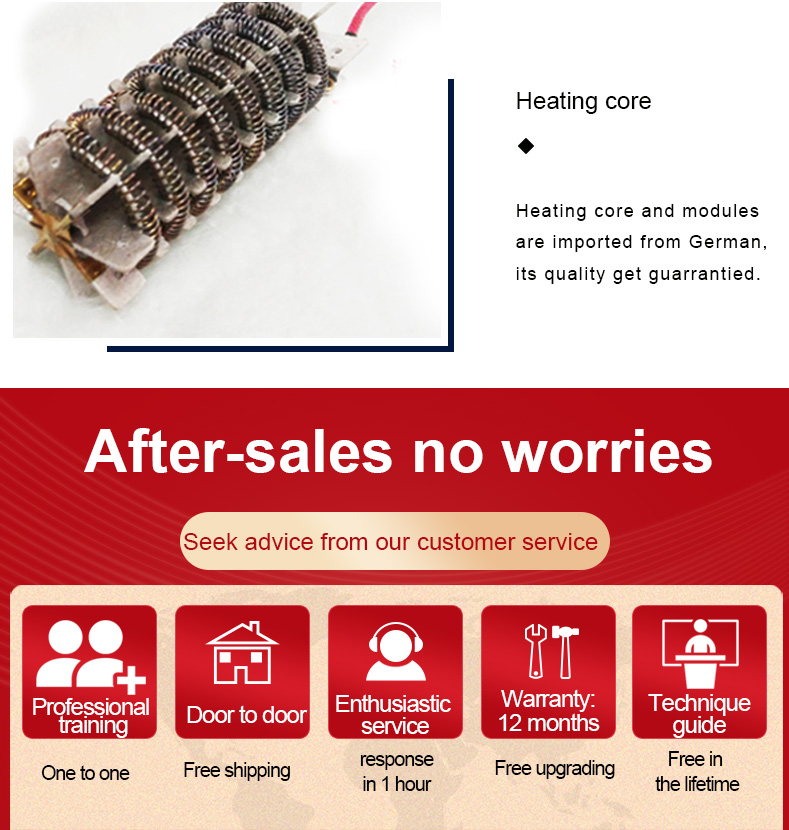

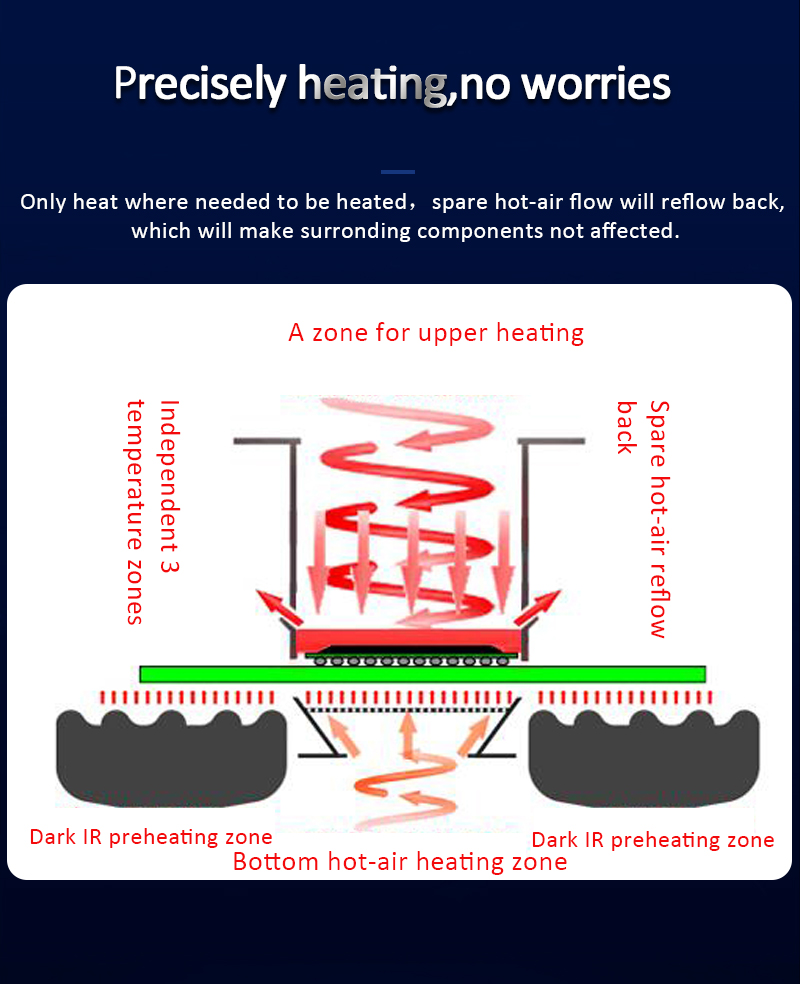

    Upper heater 1200W
    Lower heater 1200W

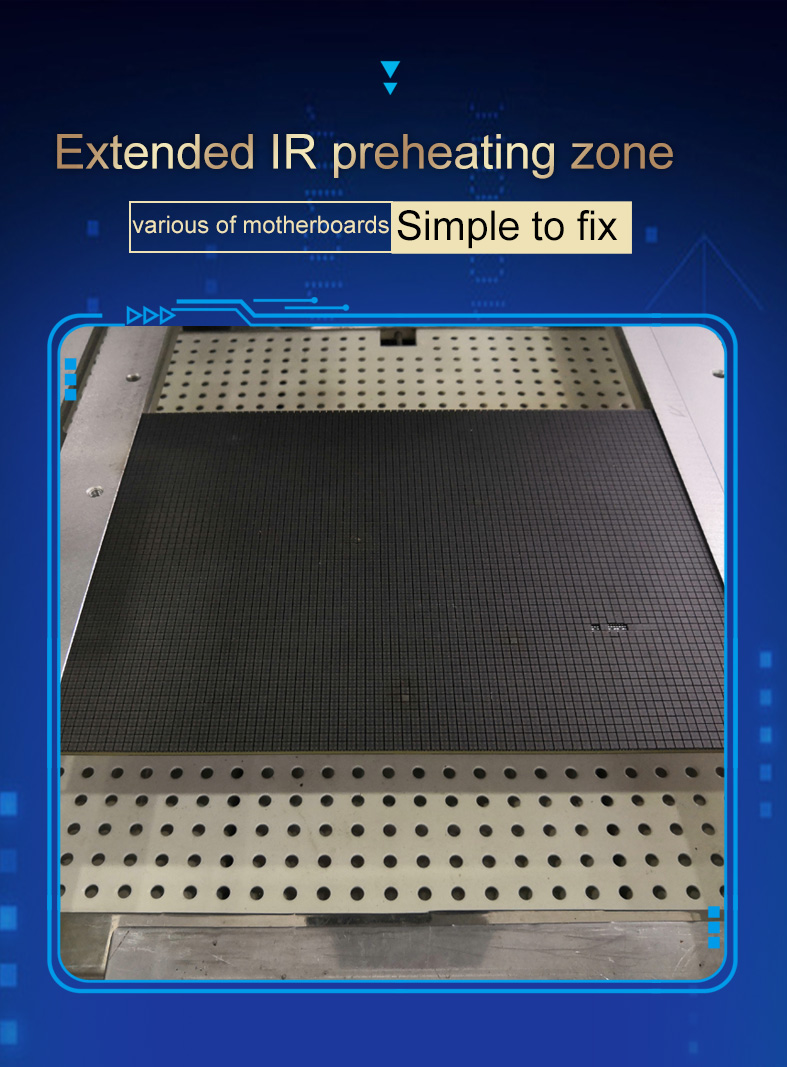

    IR power 3000W

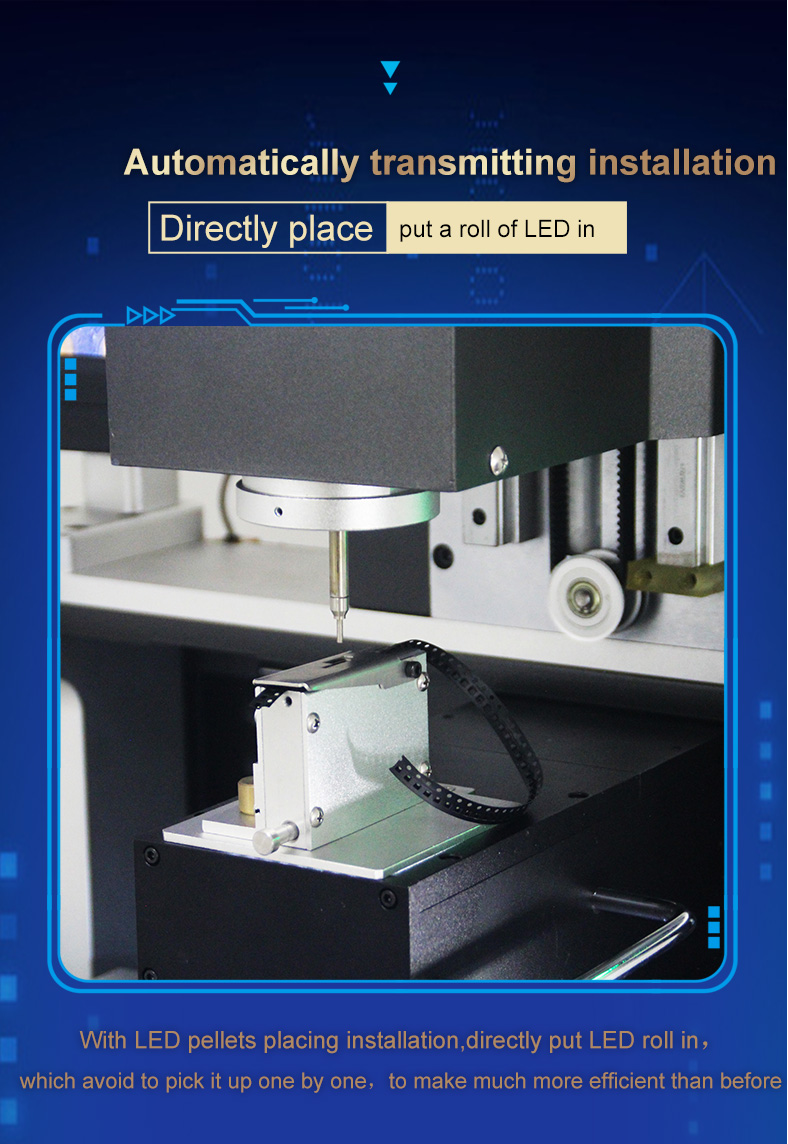

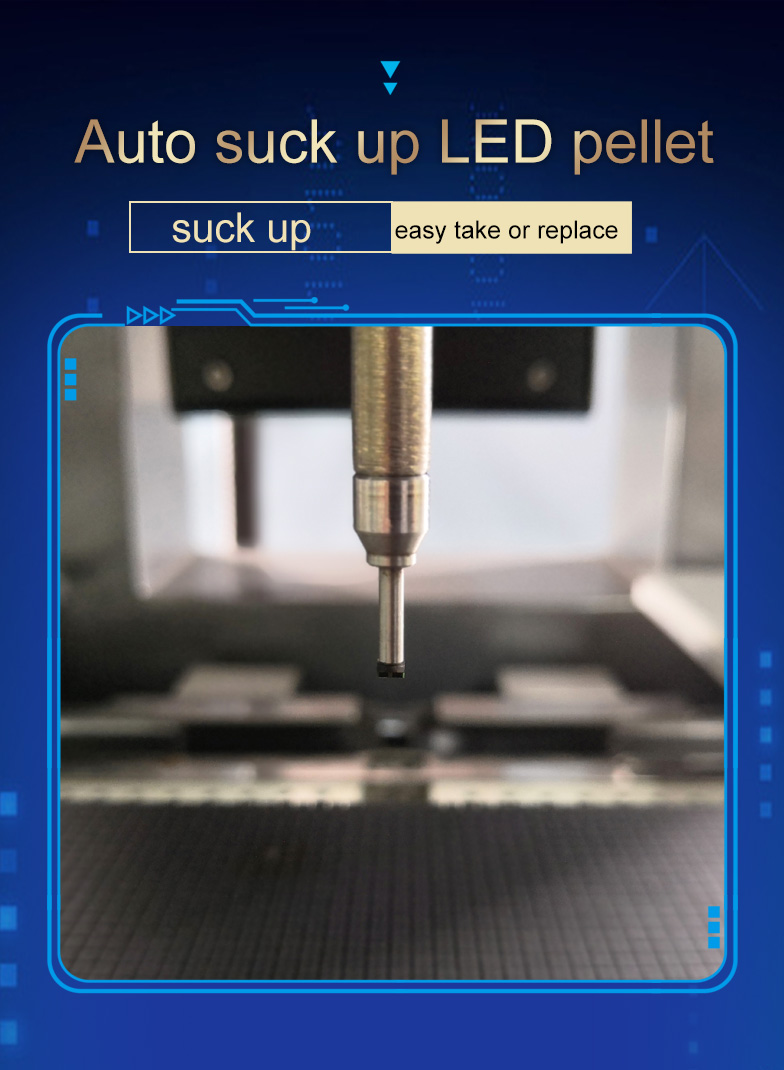

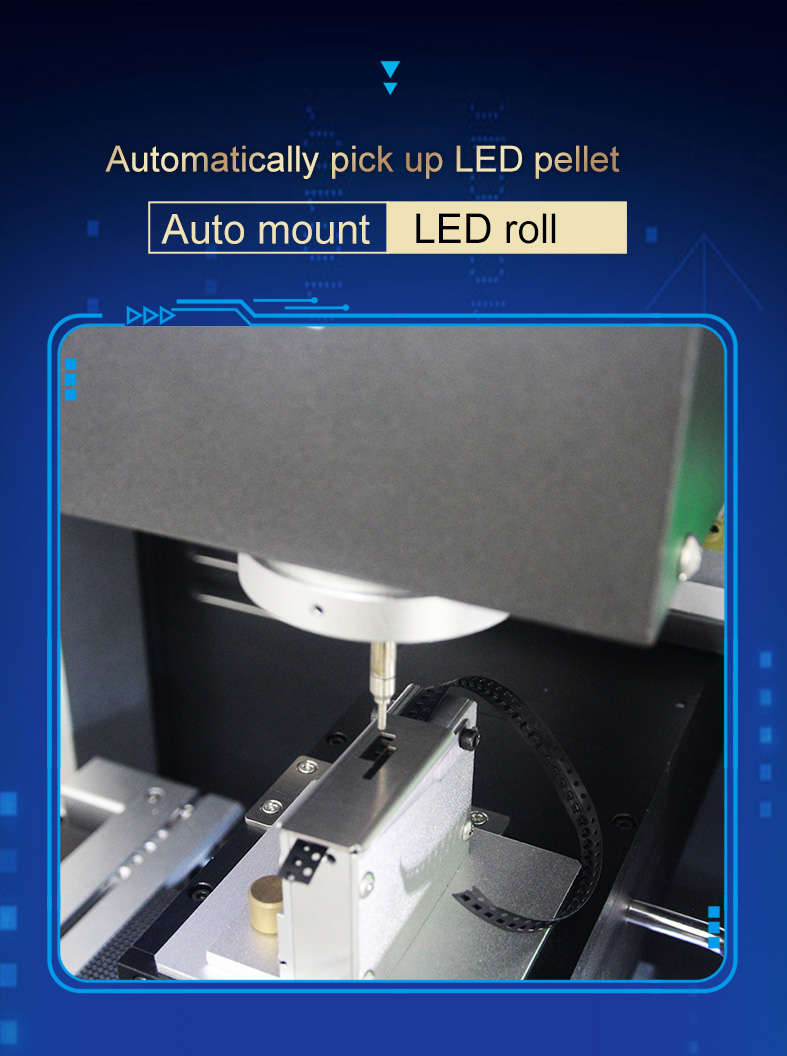

    LED feeding  With Feida system
    PCB fixed V-groove+ bracket moved at X-axis, with universal fixtures

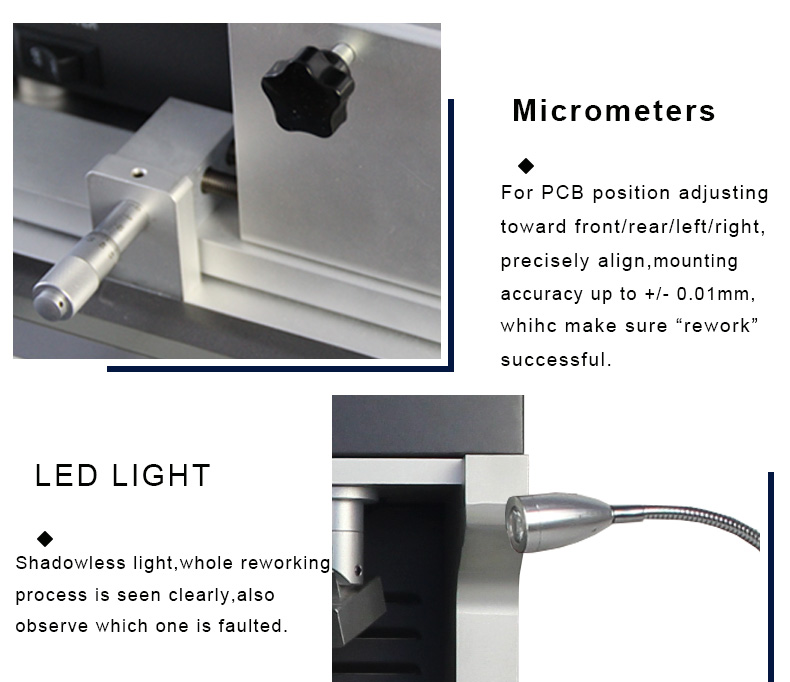

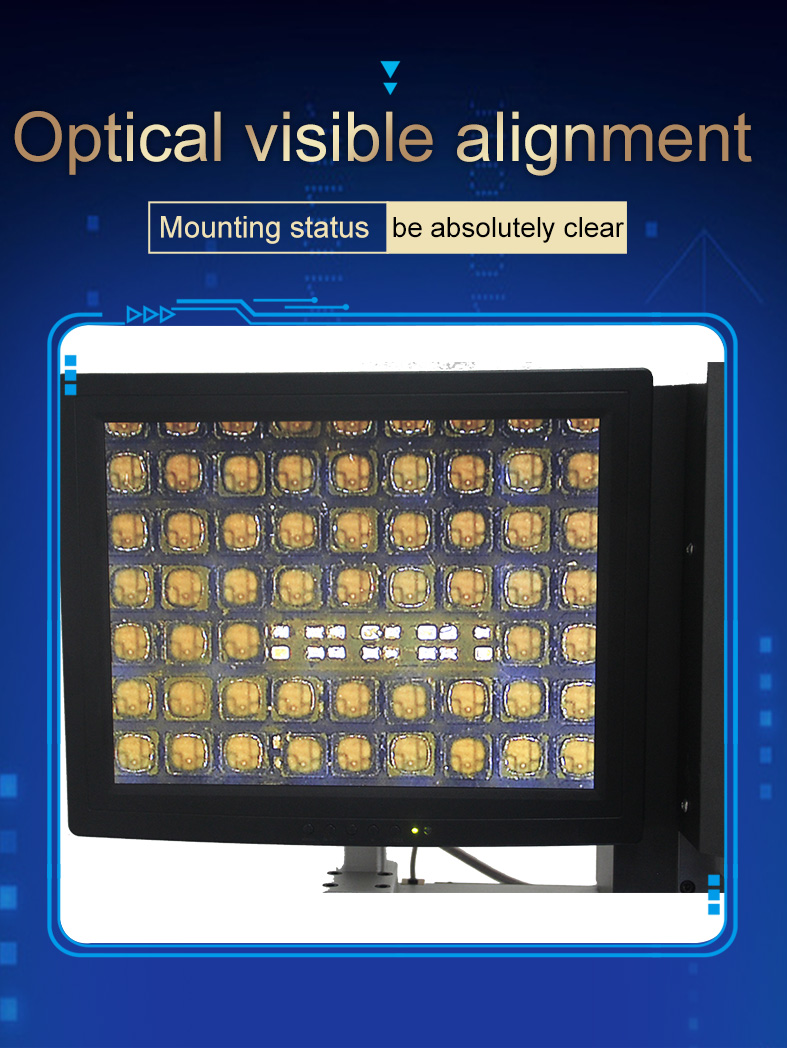

    Alignment system HD, automatically focusing, accuracy 0.01mm
    Temperature controlling K-type,closed-loop and PID
    Temperature accuracy +/-1 °C
    PCB size Max 450*500mm  Min 10*10mm

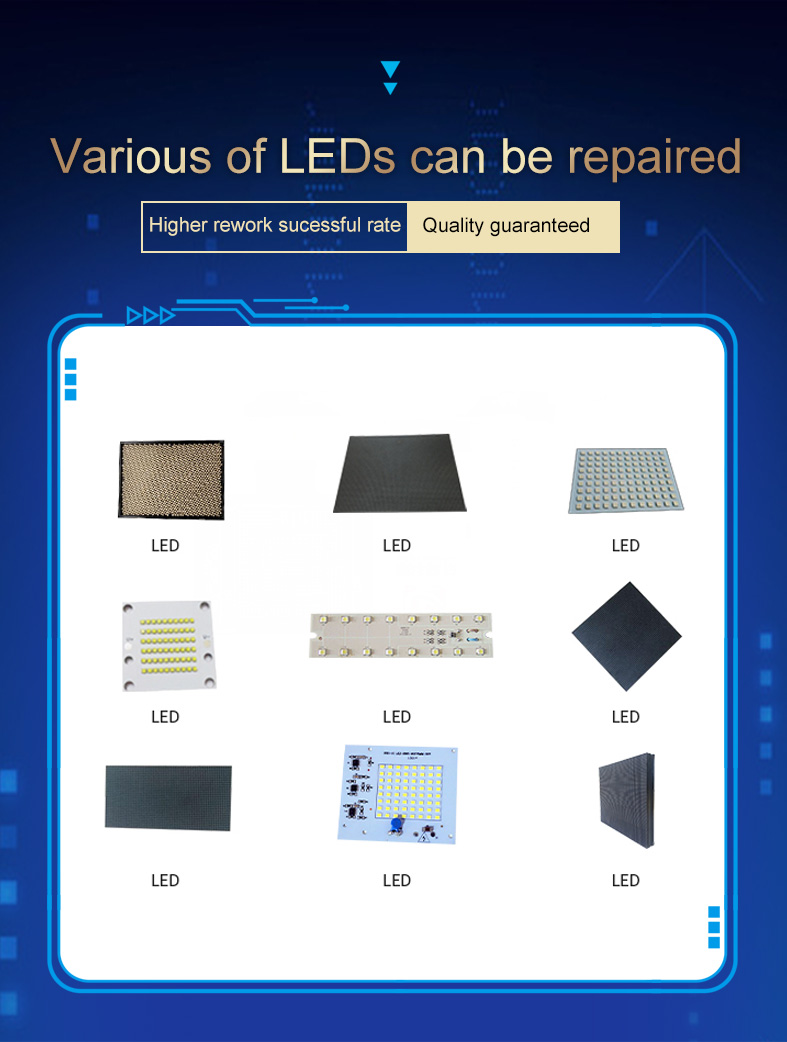

    LED size 0603,0305,1210,3528,5050 and all of others
    Min spacing 0.05mm
    Temperature port 1 pcs (optional)
    Application  LED display screen and other LED appliance
    Dimension L600*W700*H850
    Weight 70kg
