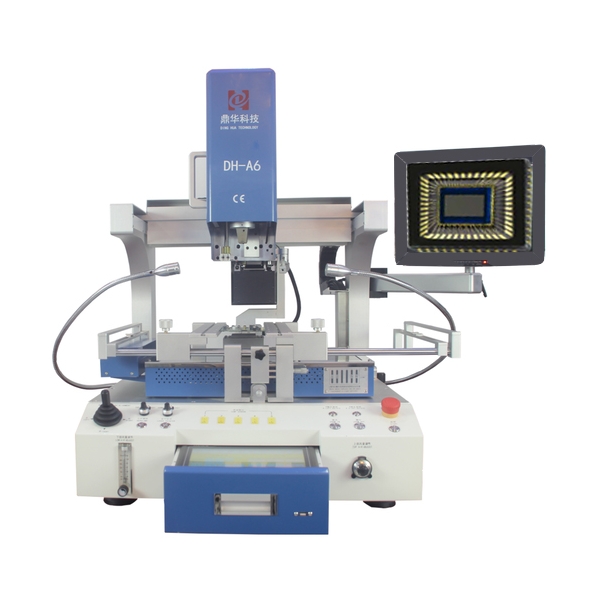

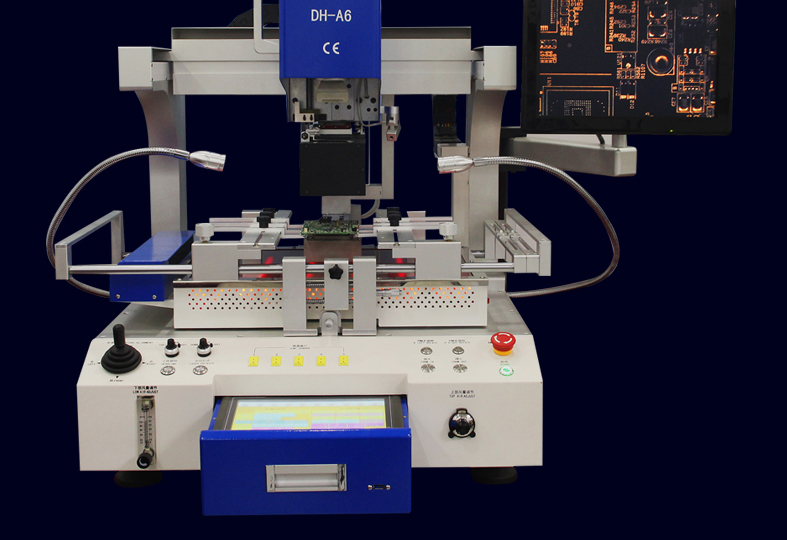

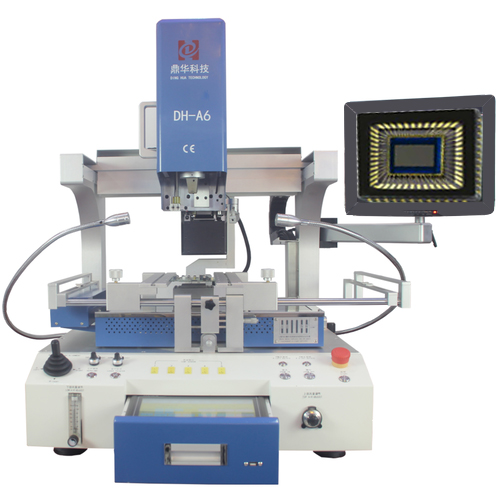

DH-A6 Auto rework station with moveable head

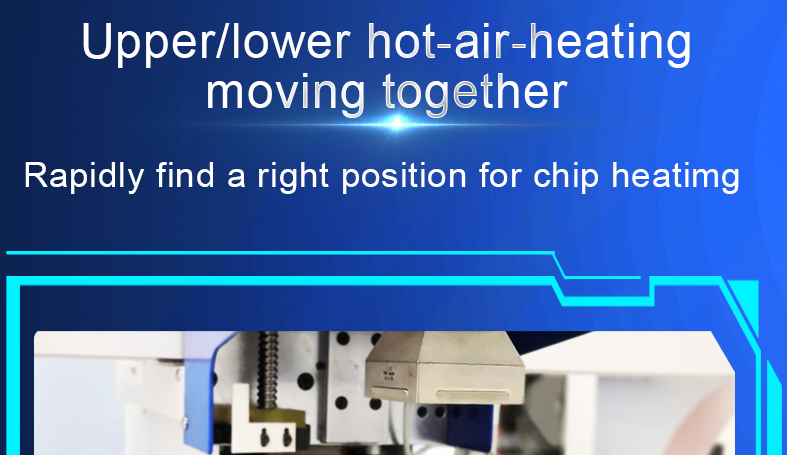

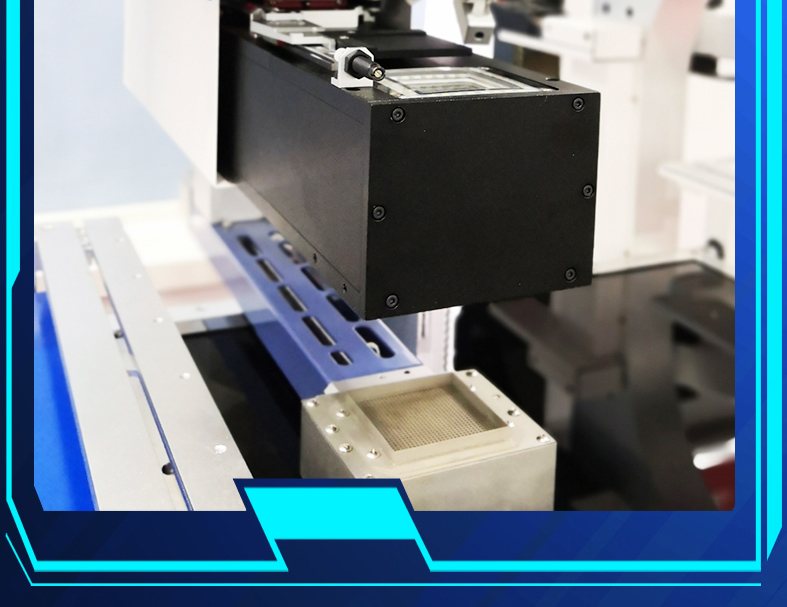

1. Fully automatic BGA rework station with moveable upper-lower heaters

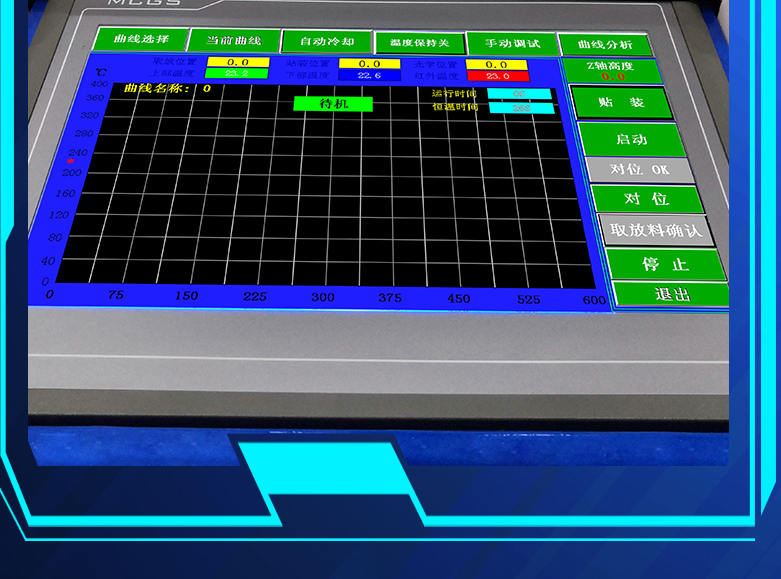

2. Temperature profile analysis

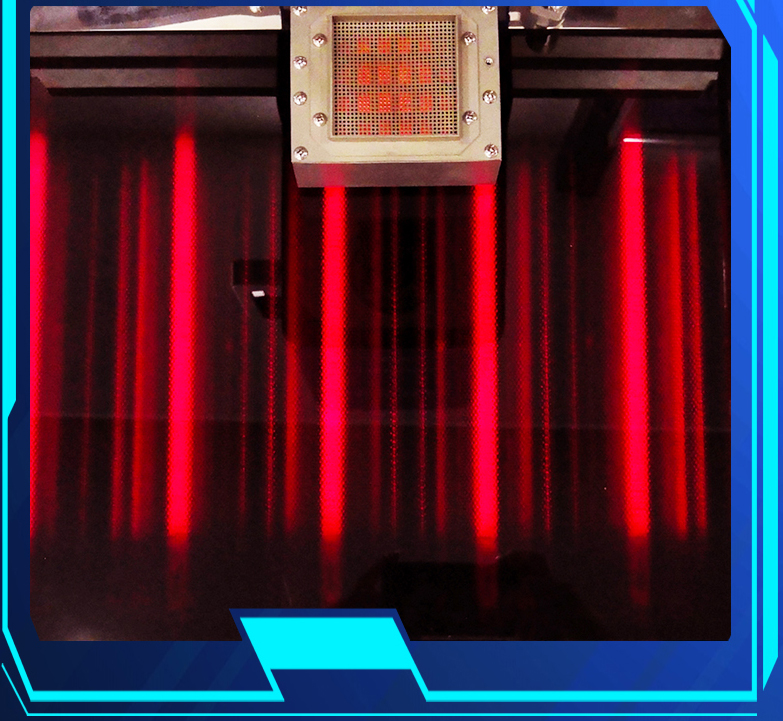

3. Carbon fiber heating for IR preheating area
3. FBGA,QFN,LGA,MLF GA,QFN,DFN,FBGA,BGA,PBGA etc. can be reworked.
    parameter of BGA rework station
    Power supply 100~220V +/-10%
    Rated power 6800W
    Upper power 1200W
    Lower power 1200W
    IR power 4200W
    Operation mode fully automatically desodoldering, pick-up, mounting and soldeirng

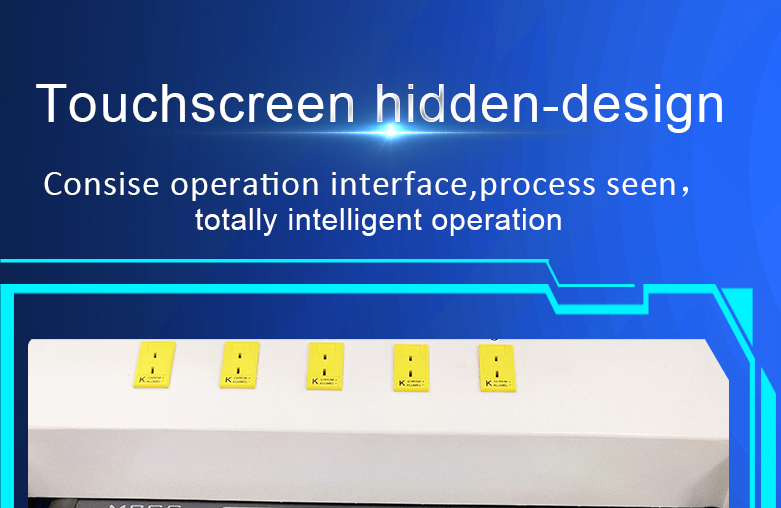

    Main configuration Auto feeding and recycling system, HD touchscreen for temperature profile setting and analysis and optical alignment system
    Temperature profile storage more than 50000 groups

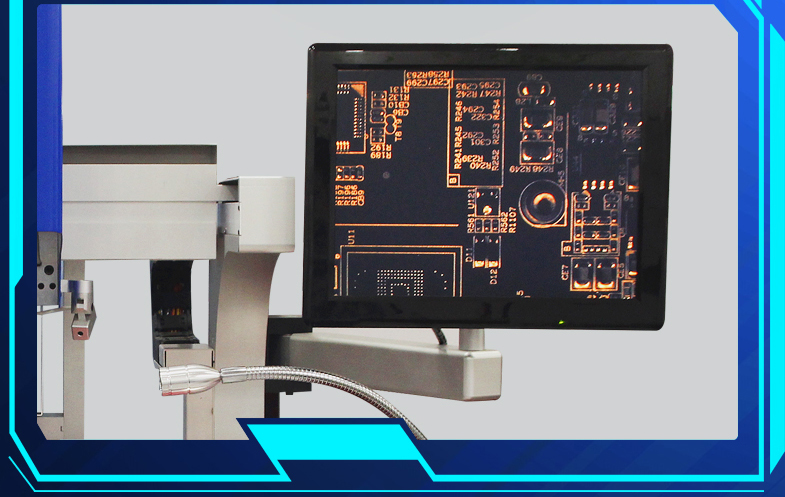

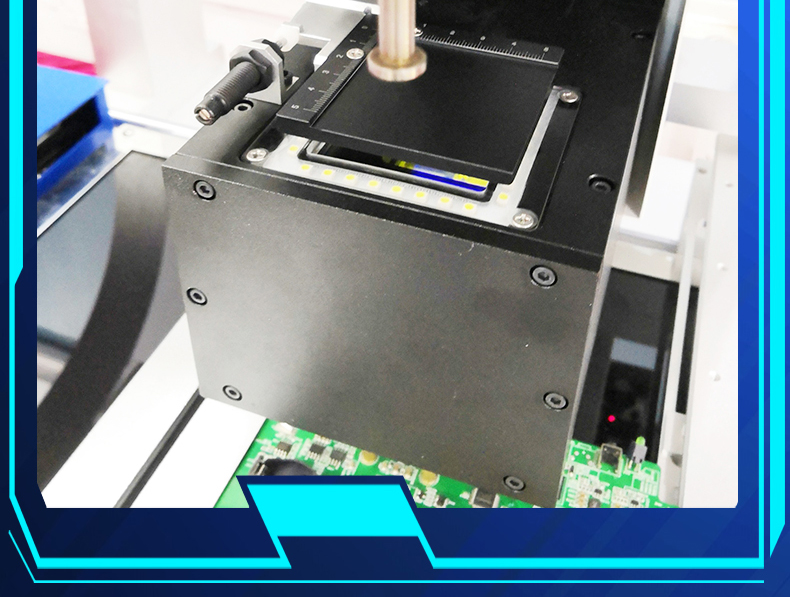

    OPtical CCD
    With chio-feeder, automatically run for feeding or recycling, and aligning.

    PCB position

    Up and down intelligent positioning, bottom "5-point support" with V-groove fixed PCB which can be adjusted freely in the X-axis direction, with universal fixtures meanwhile

    BGA position
    Laser point dedicated to find the center of chip so that chip and PCB put quickly


    Chip spacing


    L970*W850*H950 mm
