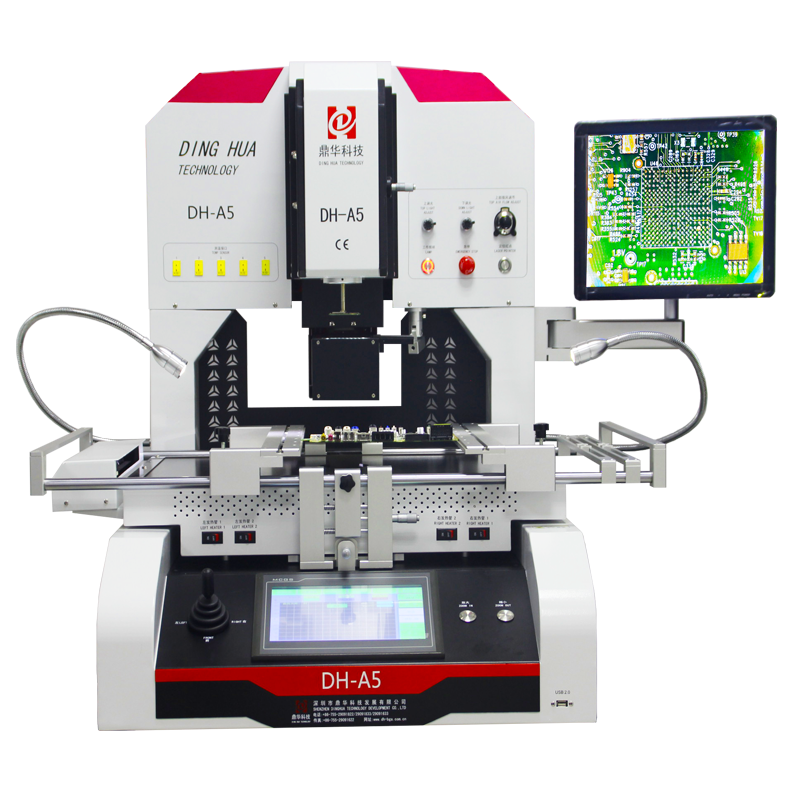

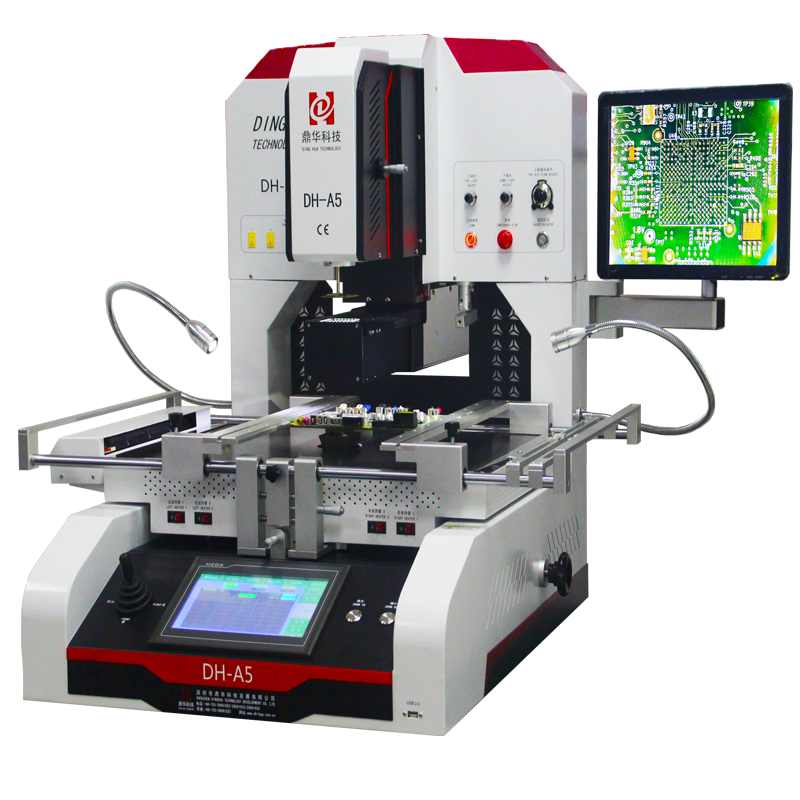

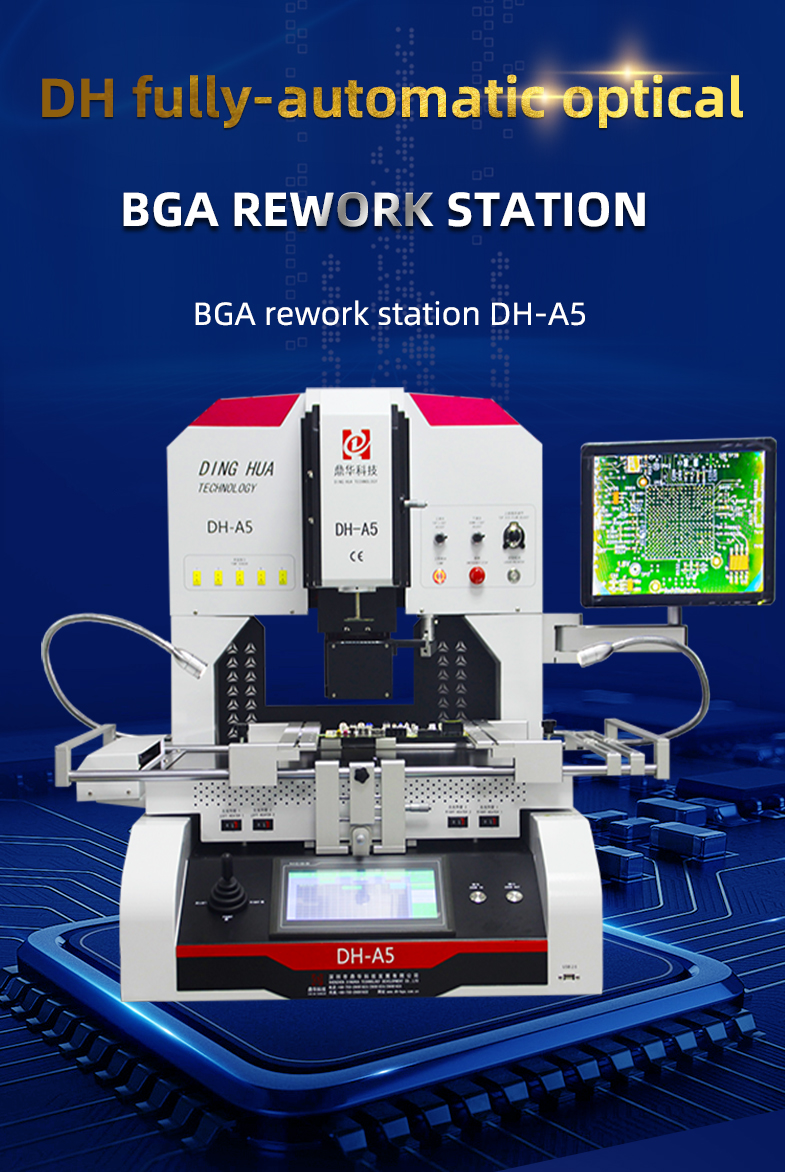

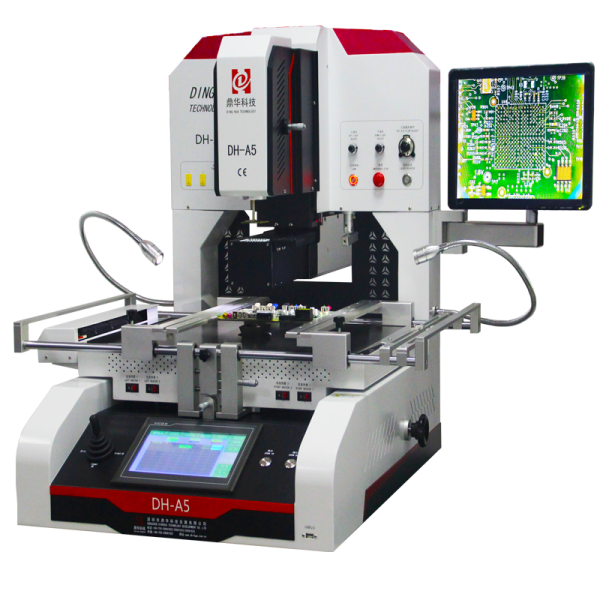

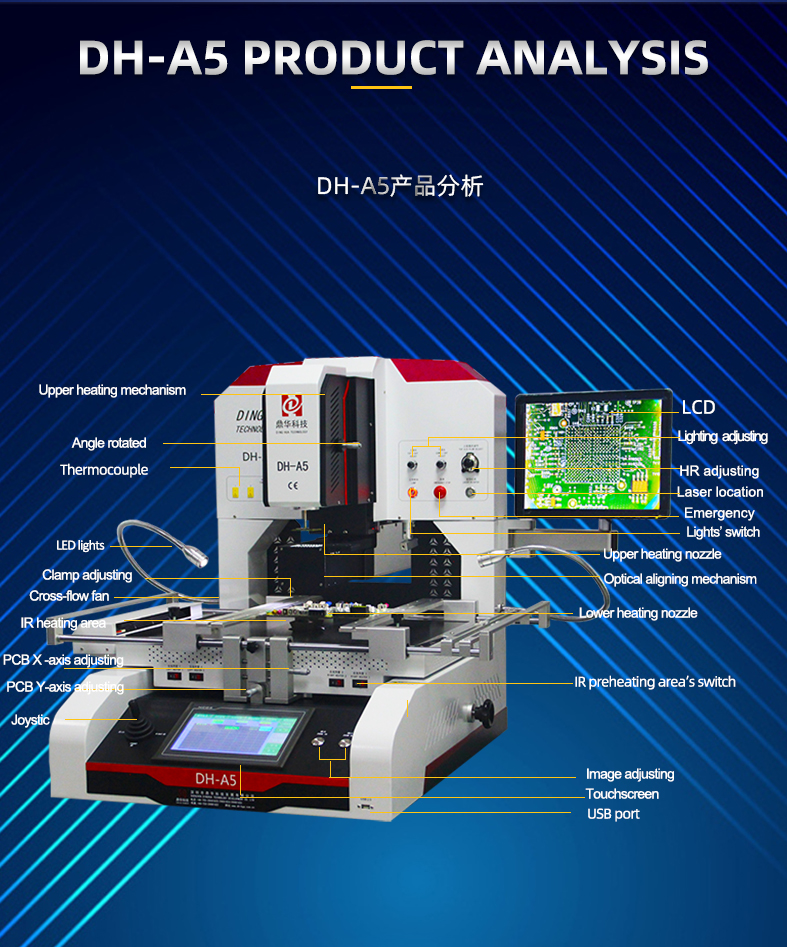

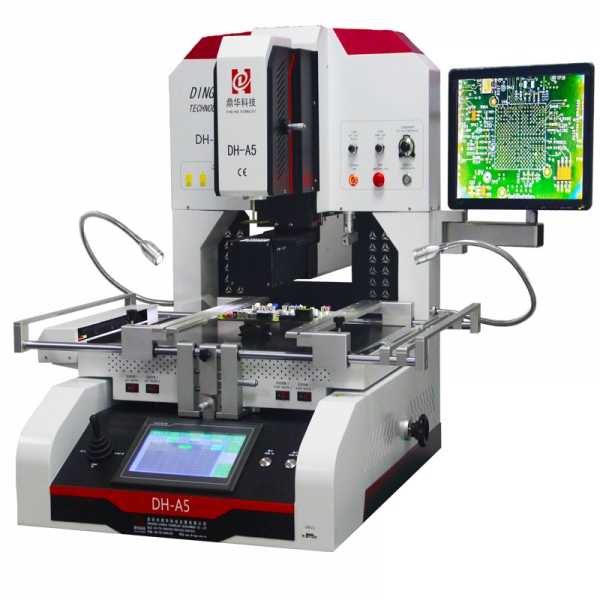

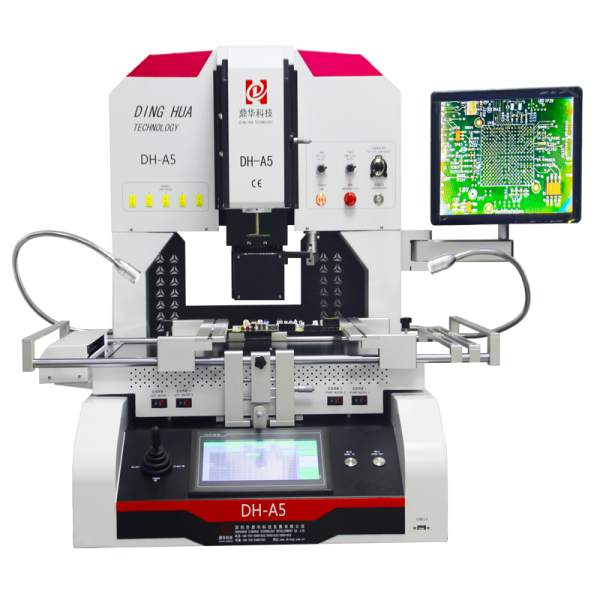

DH-A5 Automatic BGA rework station parameter
| Rated power |
6200W |

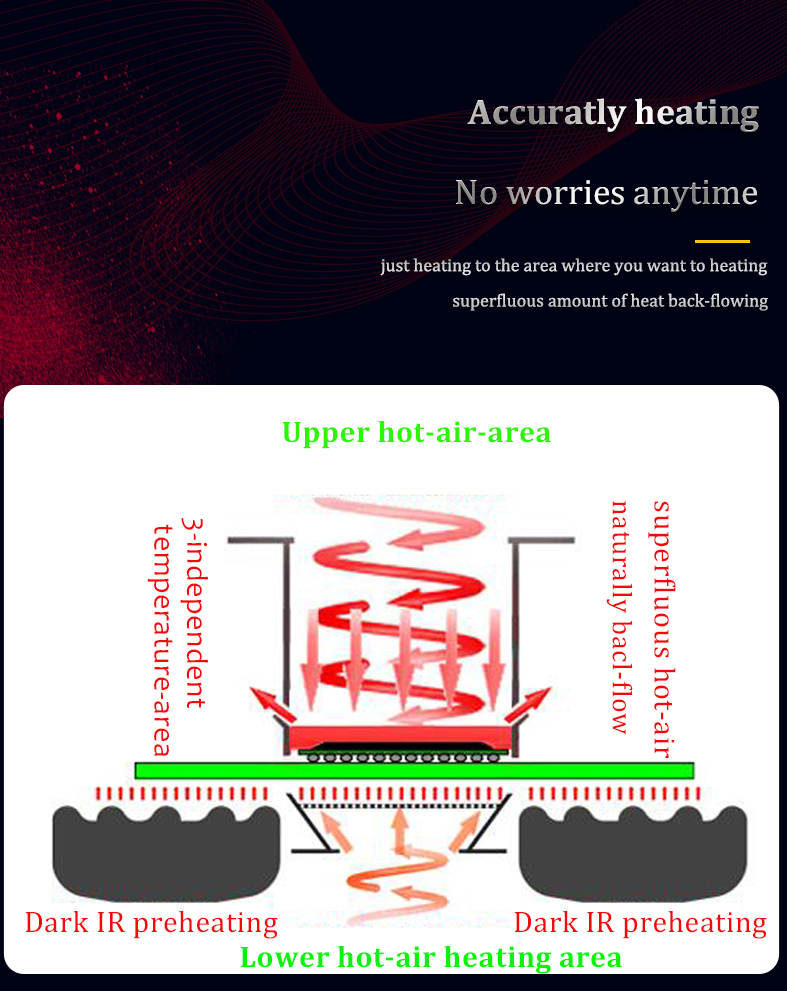

| Upper power |
1200W |

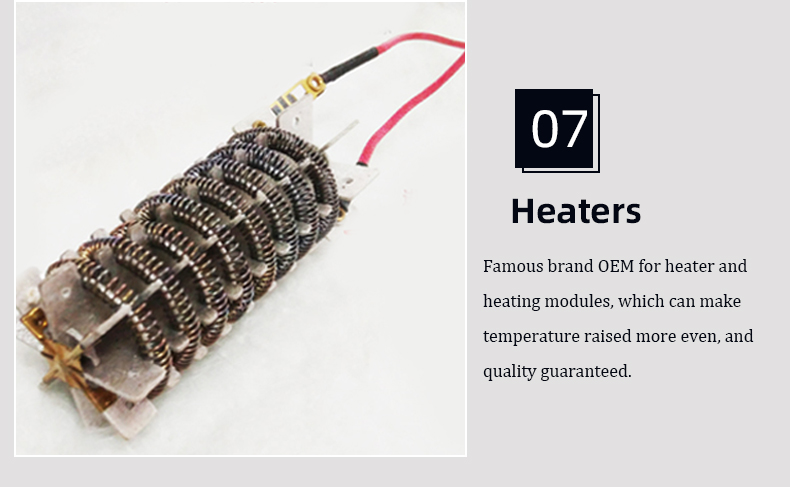

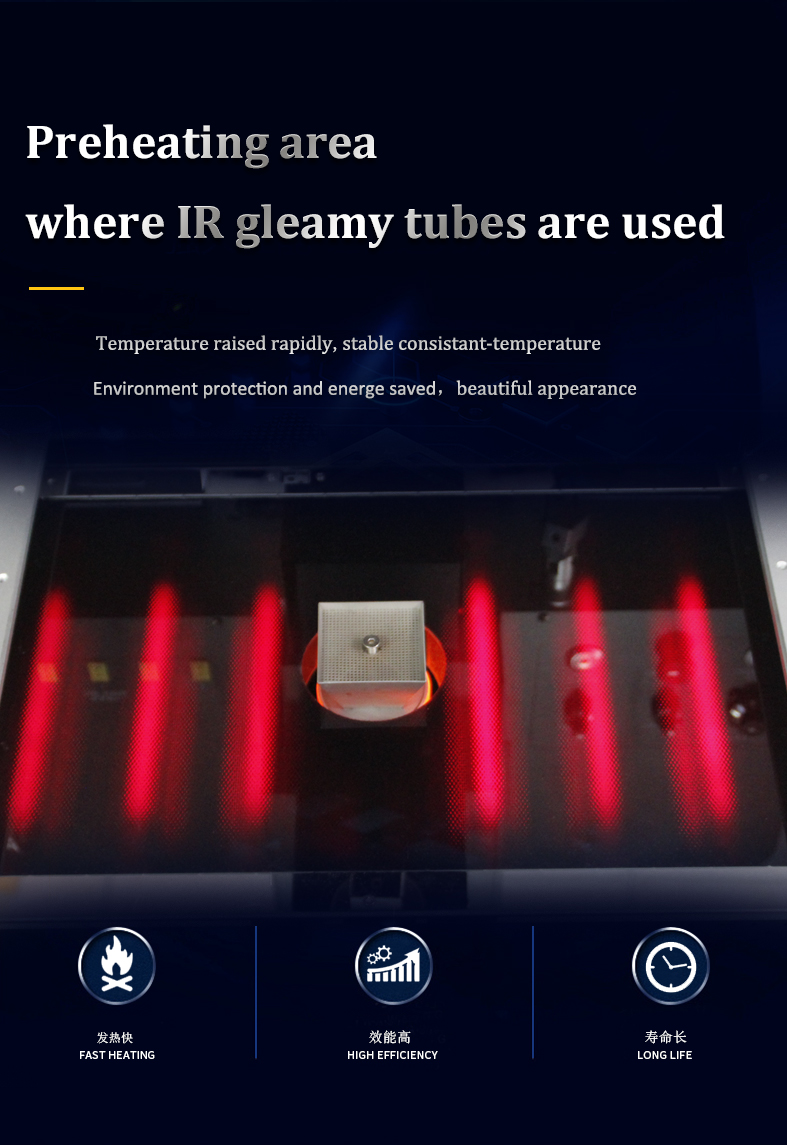

| Bottom power |
The 2nd heating: 1200W, 3rd heating: 3600W |
| Power supply |
AC 110~250V 50/60Hz |

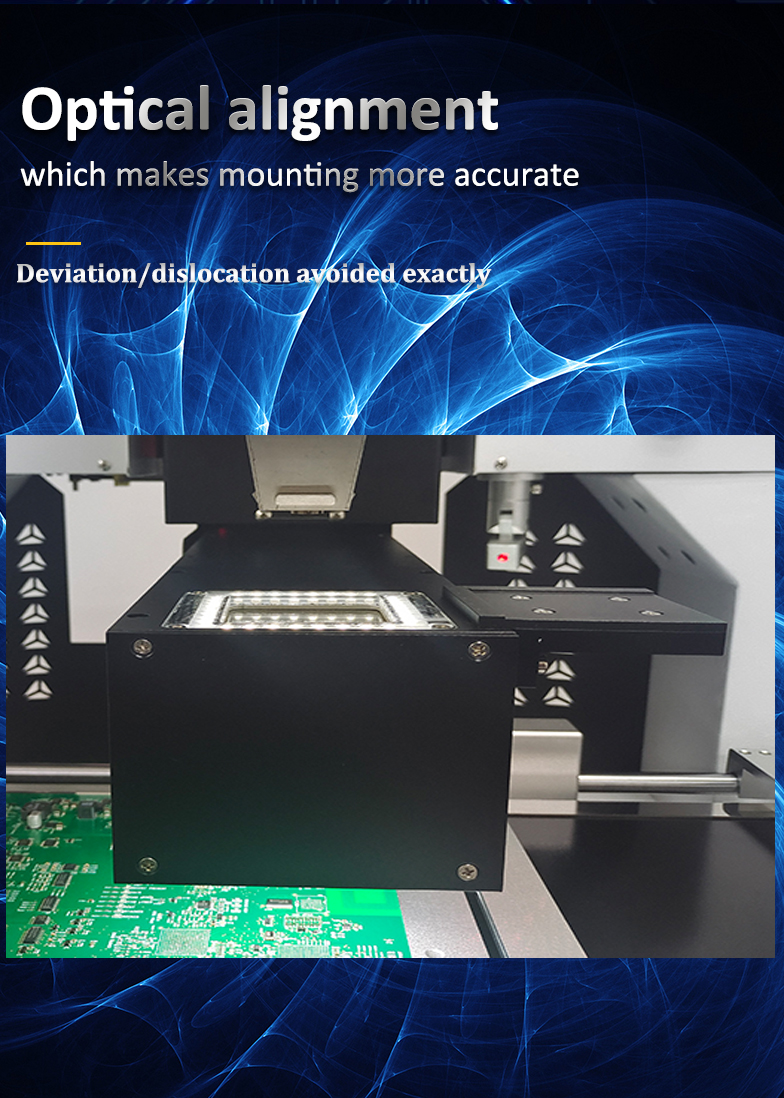

| Mounting accuracy |
±0.01mm |

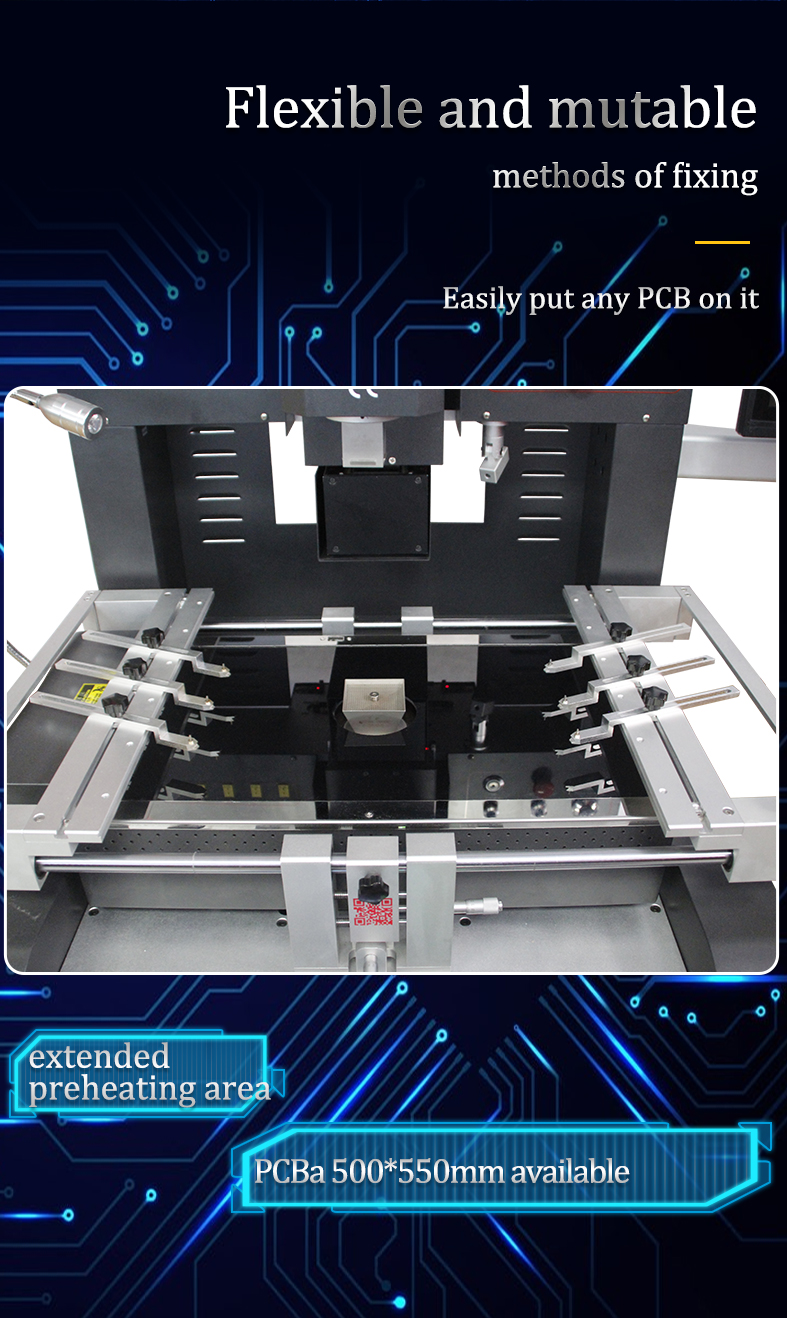

| PCB fixed |
V-groove, bracket moved at X/Y, and with fixtures |

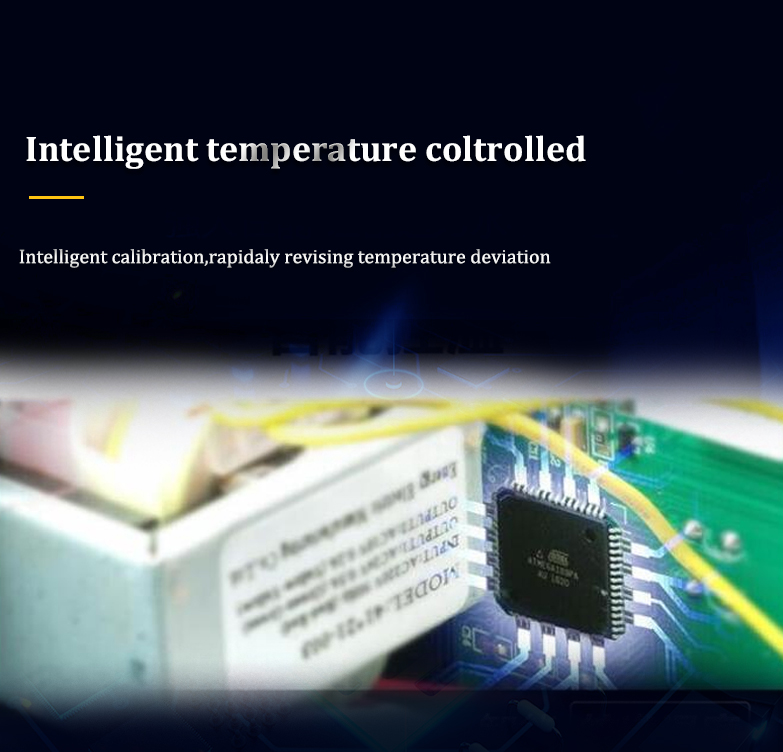

| Temperatrue controlling |
Cloosed loop, PID and K-type sensor |
| PCB size |
Max 570*640mm, Min 10*10mm |

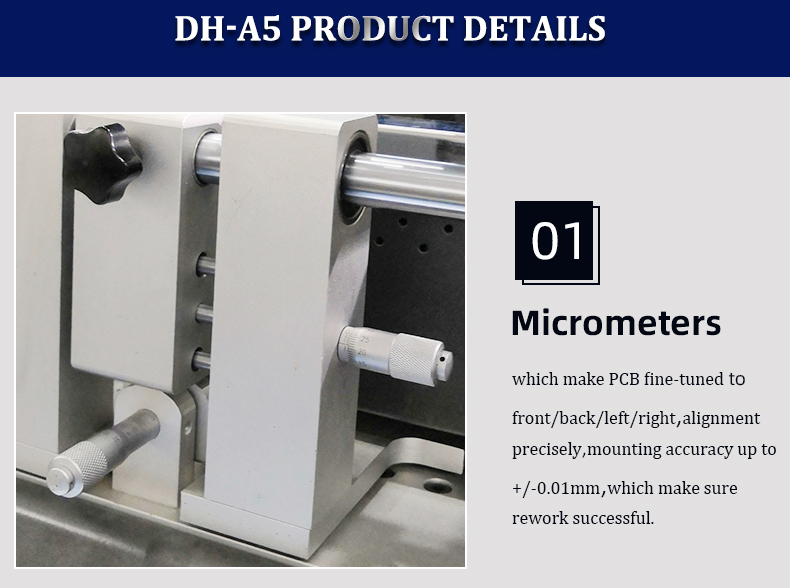

| Platform fine-tune |
Front/Back:+/-15mm, left/right::+/-15mm |
| Temperatrue accuracy |
+/-1 °C |

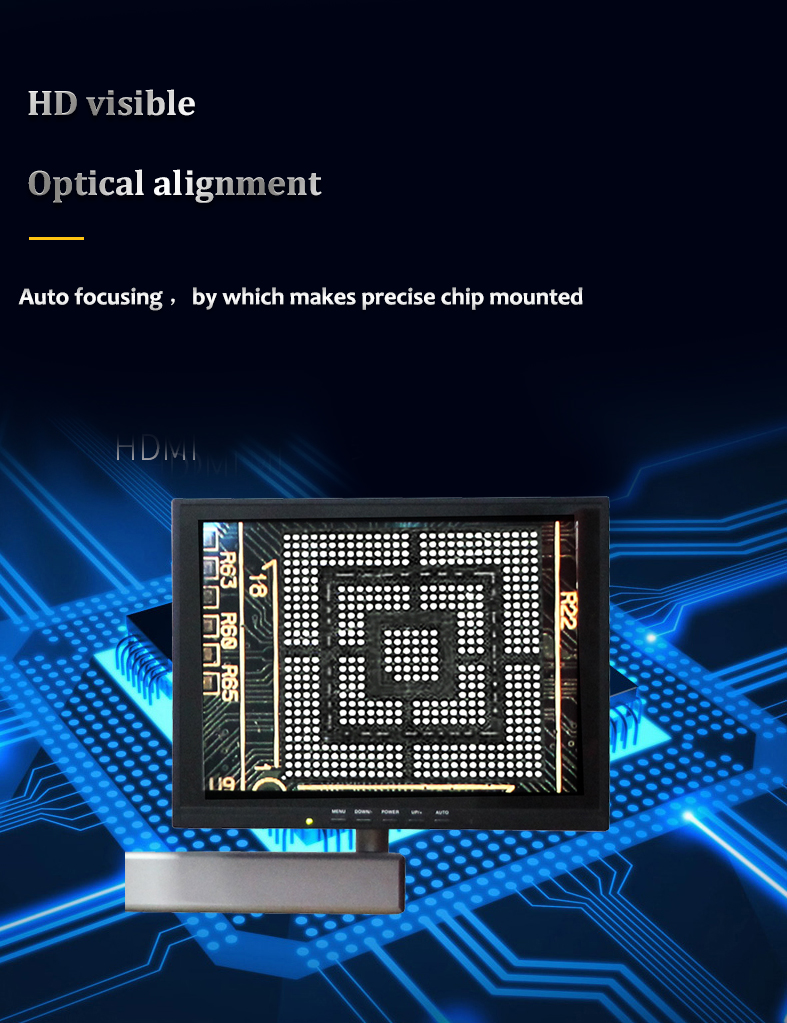

| Zoom in |
1~100 times |

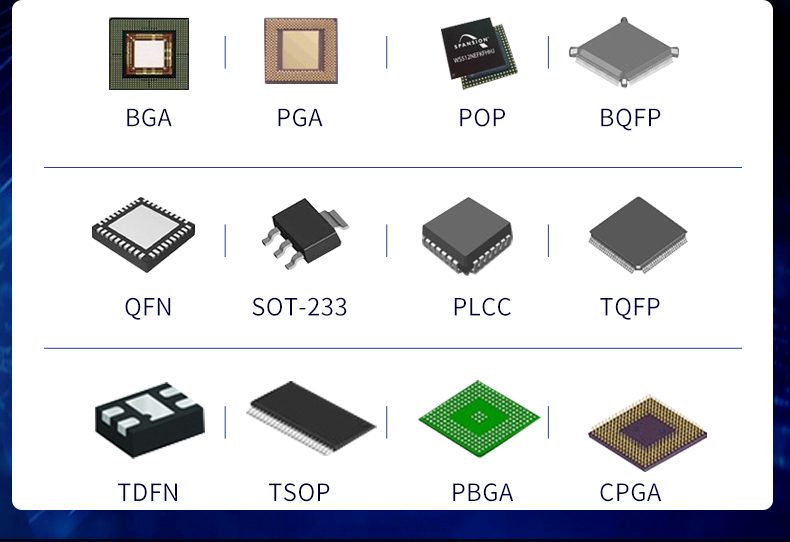

| Chip size |
1*1~80*80mm |
| Min Space |
0.1mm |

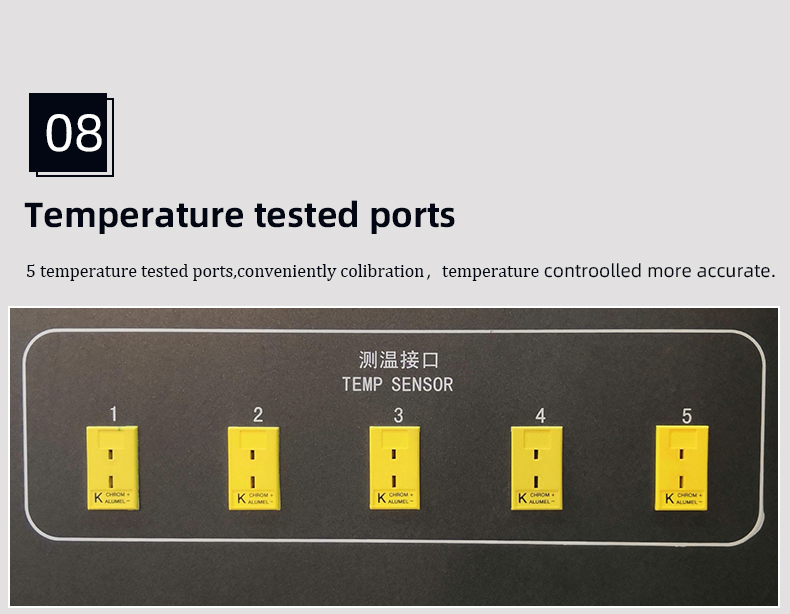

| External temperatrues‘ ports |
5 pcs(optional) |
| Dimension |
650*700*850mm |
| Net weight |
92kg |
