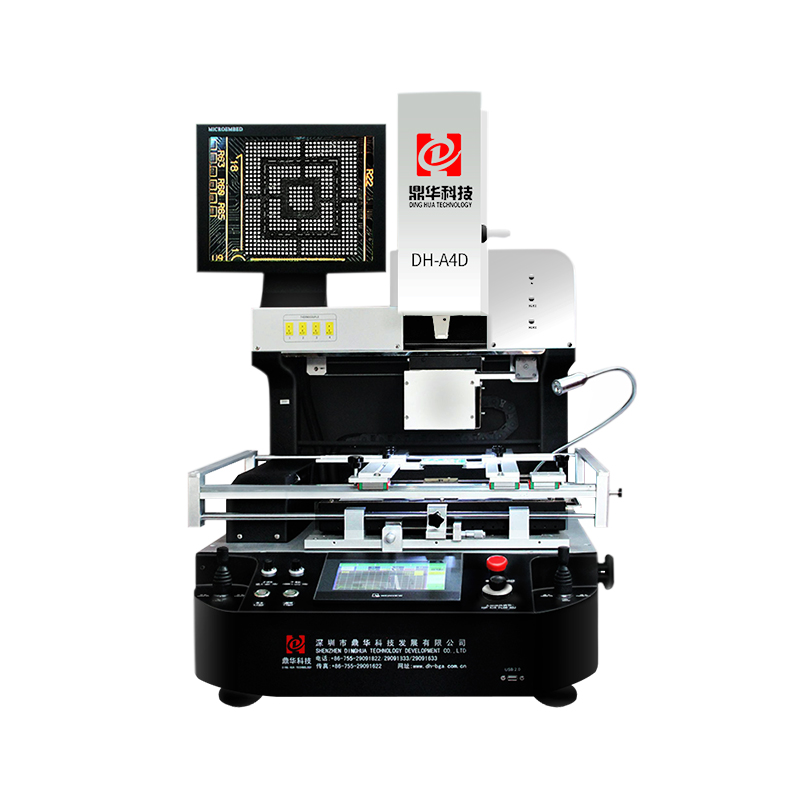

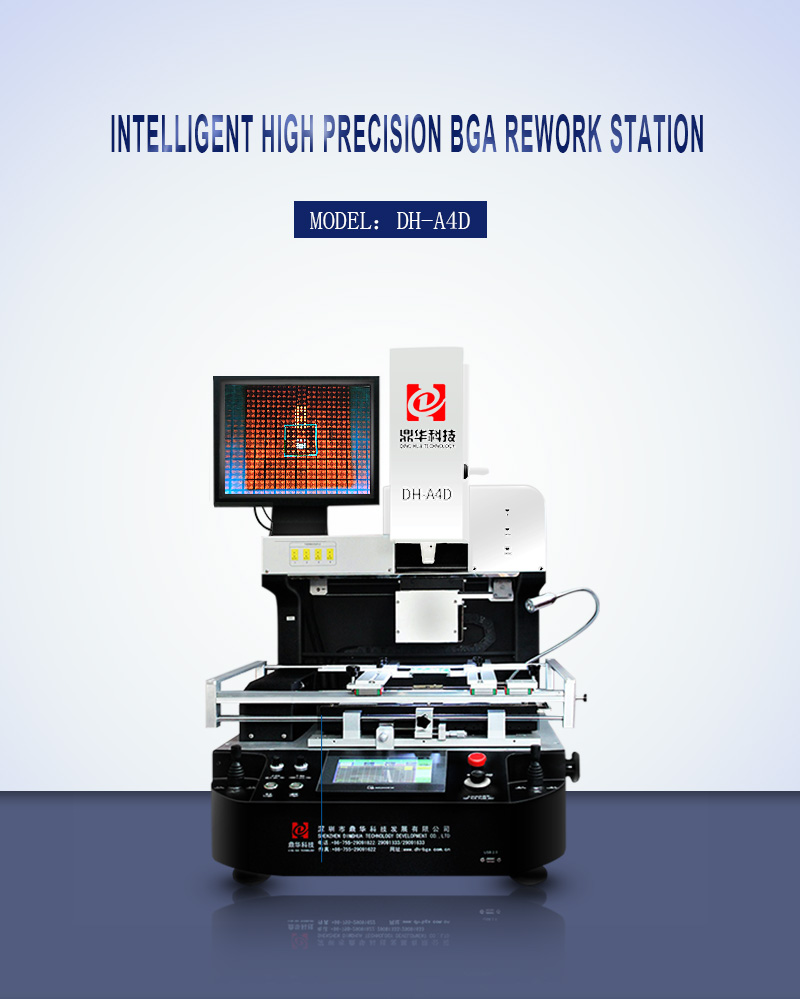

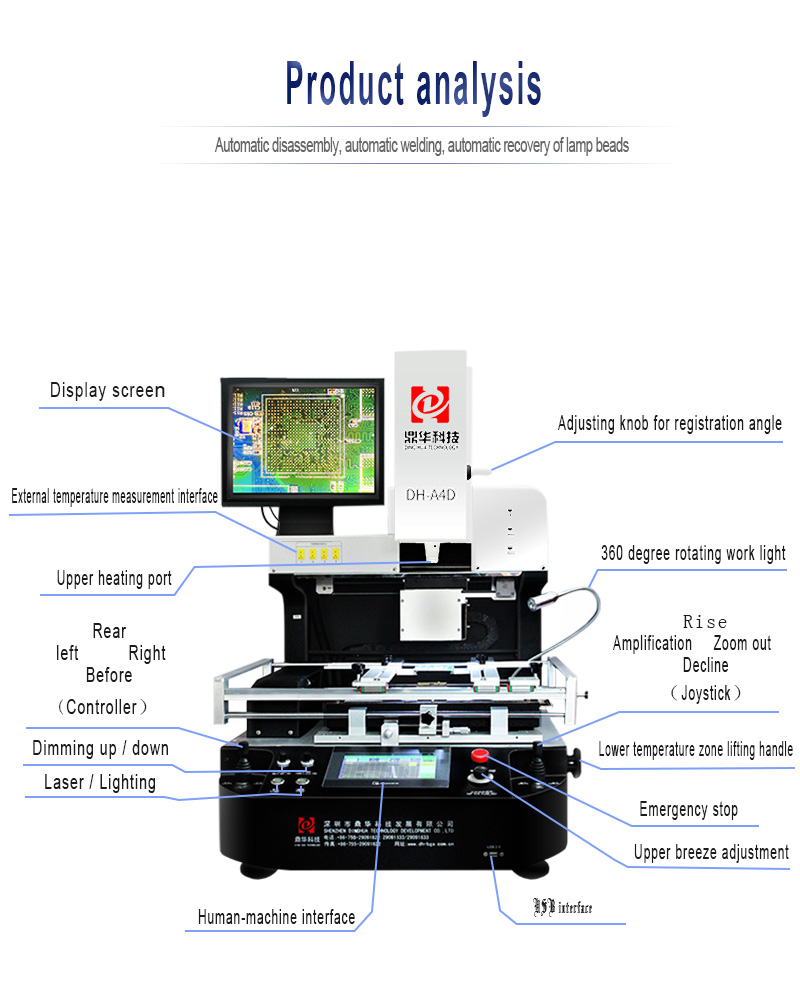

DH-A4D BGA rework station

    Power supply 220V +/- 10%    50/60HZ
    Rated power 6800W
    Upper power 1200W

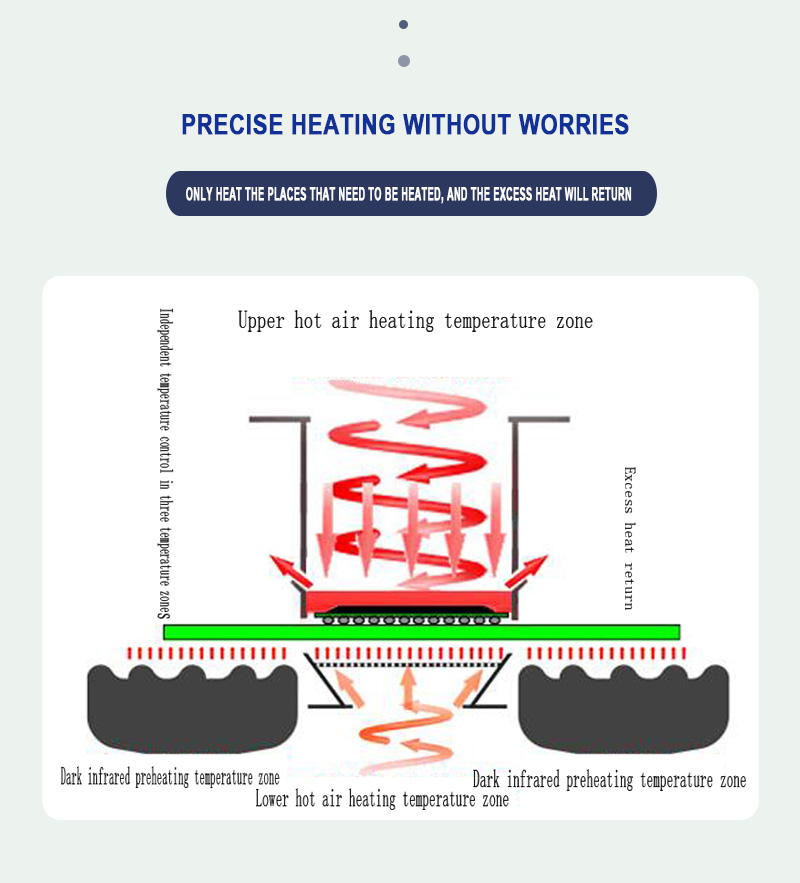

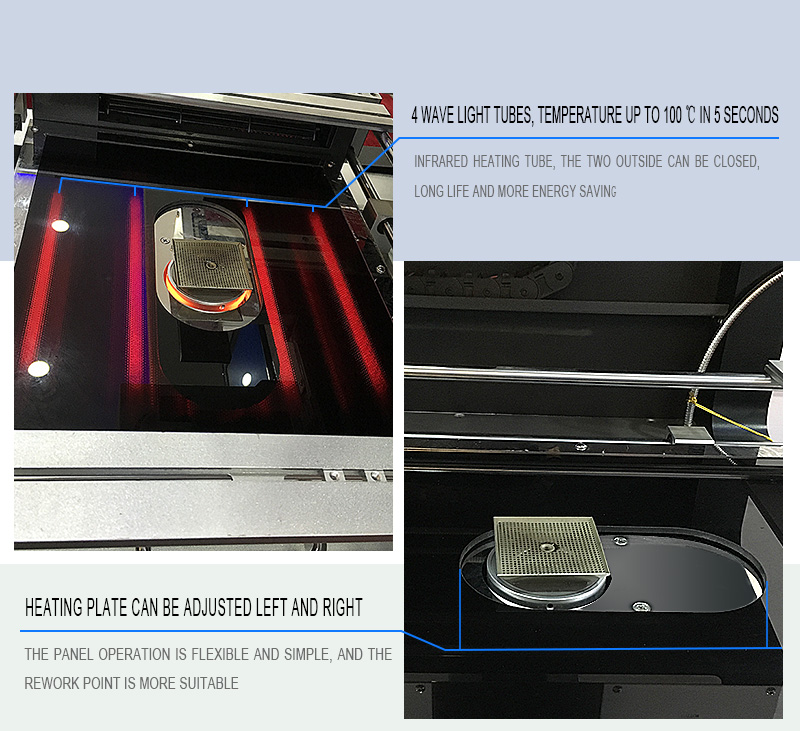

    Lower popwer the 2nd zone: 1200W, the 3rd zone(IR):4200W
    IR zone movement left or right 100mm
    PCB Positioning
    Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groove pcb bracket + universal fixtures.
    Temperature control
    K sensor, close loop, PID
    PCB size Min 10*10mm, Max:500*420mm
    Chip fine-tuning left/right:+/- 15mm, back and frond:+/- 15mm, 60° rotation

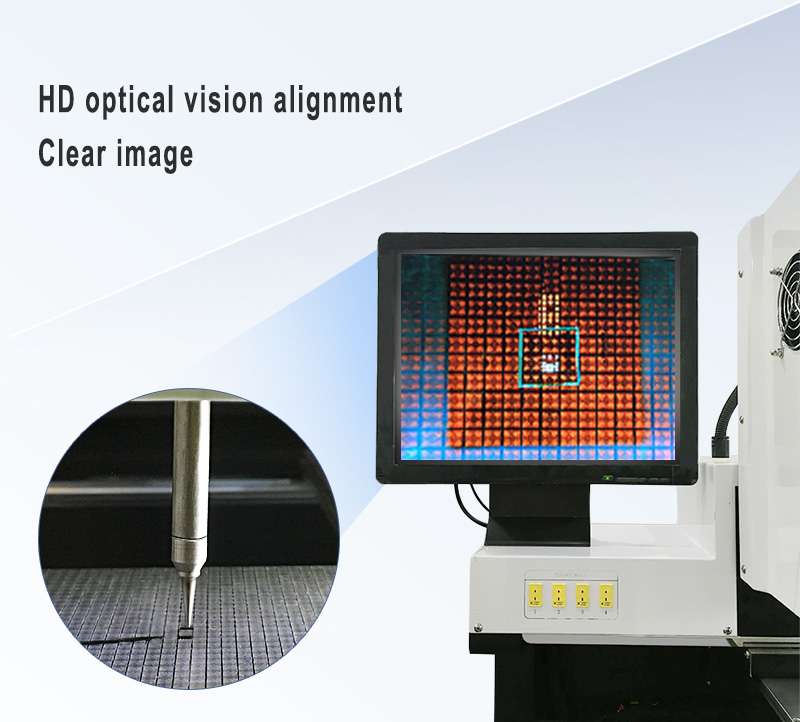

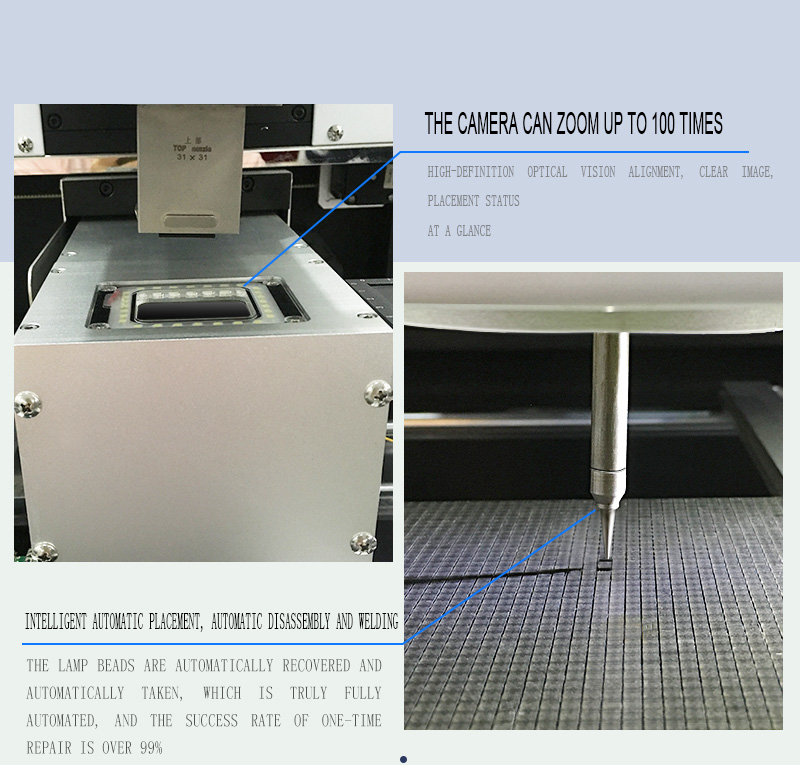

    Camera manification 10x ~100x
    Chip size 1*1~90*90mm
    Chip spacing  0.15mm

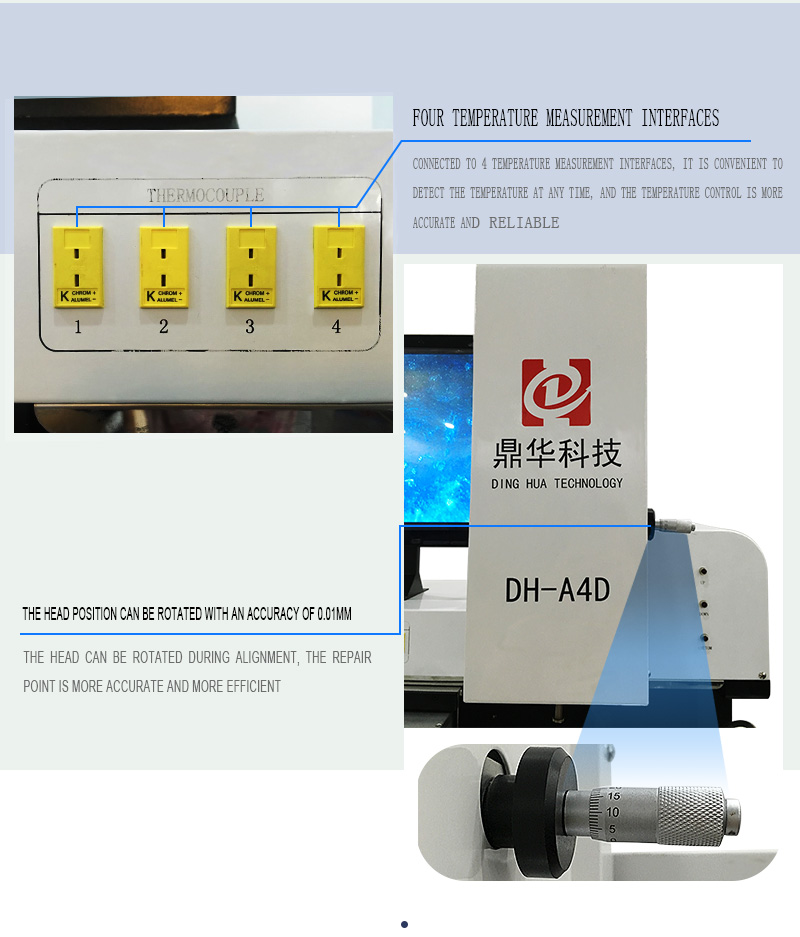

    Temp ports  4 pcs
    Placement accuracy +/-0.01mm
    Dimension 700*700*950mm
    Net weight 97kg
